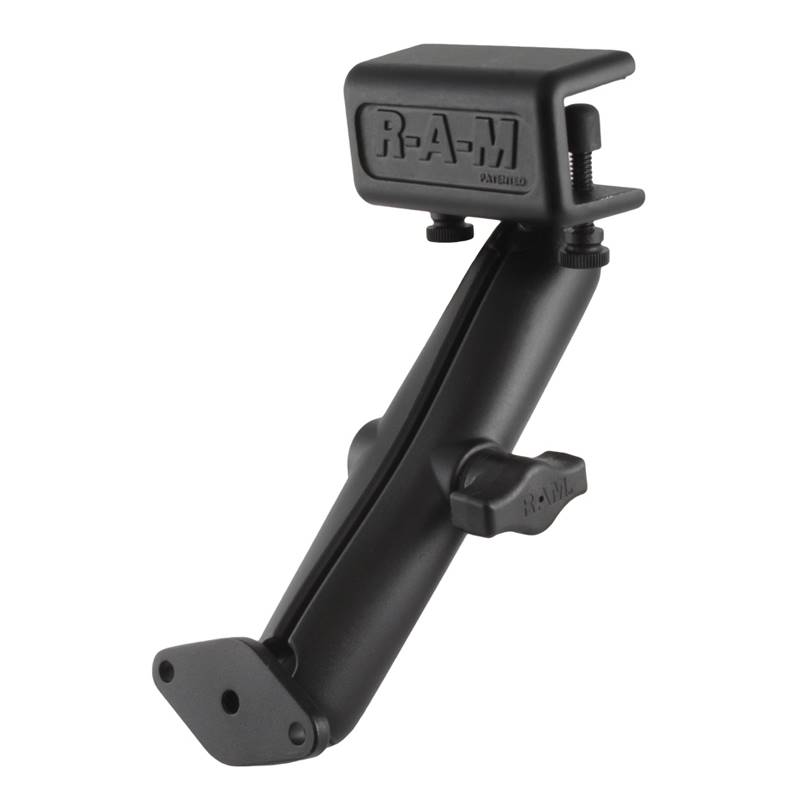

RAM Glare Shield Clamp Mount

The RAM-B-177-C consists of a glare shield clamp base, short double socket arm and diamond base
adapter. This mount is designed to mount to the lip edge of a flat surface up to 5/8" thick. Popular
mounting edges include a car side window edge lip or glare shield on an airplance. The base has two
composite bolts that, when tightened, clamp the base to the lip surface. The 2.43" x 1.31" diamond
base contains two holes 1.912" from center to center, matches the industry standard AMPS hole
pattern and will connect to a large variety of RAM Mount and third party cradles. The mount is
designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at
both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing
angles.

HARDWARE INCLUDED
(2) 1/4"-20 x 1.25" Composite Thumb Screws
(2) Rubber Caps
(1) 1.93" x 3.06" Rubber Adhesive Pad

CLAMP RANGE
.625" max

SOCKET-TO-SOCKET LENGTH
5.31"

HOLE PATTERN
2-Hole AMPS: 1.912"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Retail Bag

WEIGHT
1.07 lbs.
