RAM Glare Shield Clamp Mount for GARMIN
RAM Glare Shield Clamp Mount for GARMIN
Regular price
$77.99 USD
Regular price
Sale price
$77.99 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
B Size 1"
UPC:
793442927799
Mfg Part #:
RAM-B-177-GA38U
Availability:
Out Of Stock
Part Number:
RAM-B-177-GA38U
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components

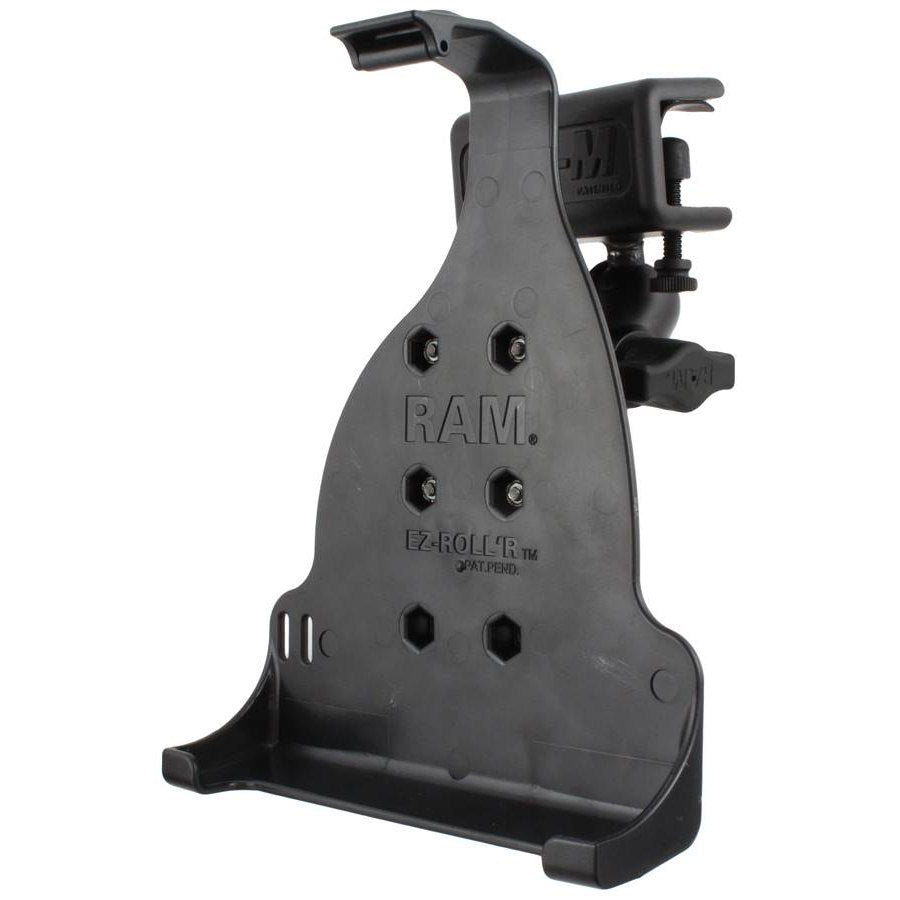

The RAM-B-177-GA38U consists of a glare shield clamp base, double socket arm and cradle for the
Garmin GPSMAP 695/696. Simply locate the clamp on any clamping surface up to 5/8" thick and gently
snug the nylon thumb screws. The double ball & socket system will provide perfect viewing angles to
get the most from your Garmin GPSMAP. The RAM glare shield clamp with double ball & socket system is
far and away the most discrete and clean way to mount most any compact electronic device to the
glare shield of your aircraft.
HARDWARE INCLUDED
Assembly Hardware
(2) 1/4"-20 x 1.25" Composite Thumb Screws
(2) Rubber Caps
(1) 1.93" x 3.06" Rubber Adhesive Pad
CLAMP RANGE
.625" max
SOCKET-TO-SOCKET LENGTH
1.75"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
High strength composite
PACKAGING TYPE
Poly Bag
WEIGHT
0.61 lbs.
Garmin GPSMAP 695/696. Simply locate the clamp on any clamping surface up to 5/8" thick and gently
snug the nylon thumb screws. The double ball & socket system will provide perfect viewing angles to
get the most from your Garmin GPSMAP. The RAM glare shield clamp with double ball & socket system is
far and away the most discrete and clean way to mount most any compact electronic device to the
glare shield of your aircraft.
HARDWARE INCLUDED
Assembly Hardware
(2) 1/4"-20 x 1.25" Composite Thumb Screws
(2) Rubber Caps
(1) 1.93" x 3.06" Rubber Adhesive Pad
CLAMP RANGE
.625" max
SOCKET-TO-SOCKET LENGTH
1.75"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
High strength composite
PACKAGING TYPE
Poly Bag
WEIGHT
0.61 lbs.
- Material:High Strength Composite &
Powder Coated Marine Grade Aluminum - Ball Size:B Size 1" Rubber Ball
- Note:The "U" in the part number reflects product packaged in poly bag.
- Mount will attach to flat surfaces with the following dimensions:Min: 4.4mm / 0.17" - Max: 28.0mm / 1.12"
- Weight:0.61 lbs.
