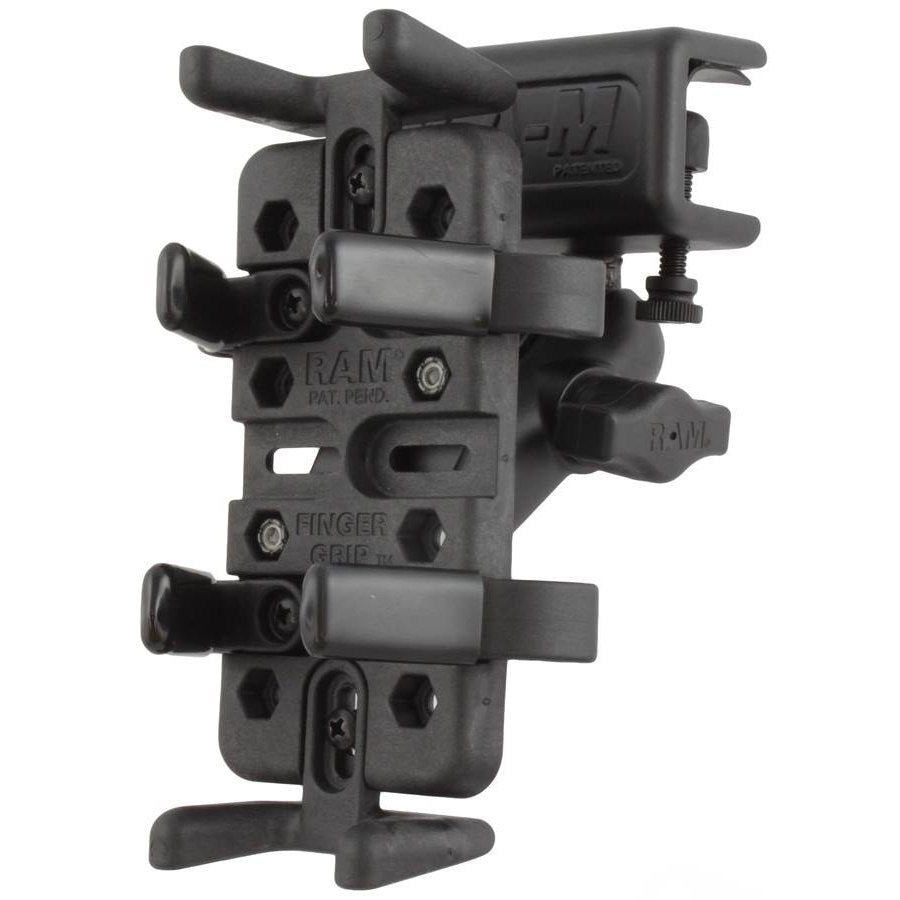

The RAM-B-177-UN4 consists of a glare shield clamp base, double socket arm and universal Finger
Grip cradle. Simply locate the clamp on any clamping surface up to 5/8" thick and gently snug the
nylon thumb screws. The double ball & socket system will provide perfect viewing angles to get the
most from your electronic device. The RAM glare shield clamp with double ball & socket system is far
and away the most discrete and clean way to mount most any compact electronic device to the glare
shield of your aircraft.
HARDWARE INCLUDED
Assembly Hardware
(2) 1/4"-20 x 1.25" Composite Thumb Screws
(2) Rubber Caps
(1) 1.93" x 3.06" Rubber Adhesive Pad
HOLDER DIMENSIONS
Height Range: 7.25" max (using optional supports)
Width Range: 1.25" - 3.5"
Max Depth: 1.5"
CLAMP RANGE
.625" max
SOCKET-TO-SOCKET LENGTH
1.75"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
High strength composite
PACKAGING TYPE
Retail Bag
ADDITIONAL INFORMATION
WEIGHT
0.61 lbs.
Grip cradle. Simply locate the clamp on any clamping surface up to 5/8" thick and gently snug the
nylon thumb screws. The double ball & socket system will provide perfect viewing angles to get the
most from your electronic device. The RAM glare shield clamp with double ball & socket system is far
and away the most discrete and clean way to mount most any compact electronic device to the glare
shield of your aircraft.
HARDWARE INCLUDED
Assembly Hardware
(2) 1/4"-20 x 1.25" Composite Thumb Screws
(2) Rubber Caps
(1) 1.93" x 3.06" Rubber Adhesive Pad
HOLDER DIMENSIONS
Height Range: 7.25" max (using optional supports)
Width Range: 1.25" - 3.5"
Max Depth: 1.5"
CLAMP RANGE
.625" max
SOCKET-TO-SOCKET LENGTH
1.75"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
High strength composite
PACKAGING TYPE
Retail Bag
ADDITIONAL INFORMATION
WEIGHT
0.61 lbs.
- Material:High Strength Composite &
Powder Coated Marine Grade Aluminum - Ball Size:B Size 1" Rubber Ball
- Note:Part number reflects product packaged in clear clam shell for store shelf display.
- Mount will attach to flat surfaces with the following dimensions:Min: 4.4mm / 0.17" - Max: 28.0mm / 1.12"
- Weight:0.61 lbs.
