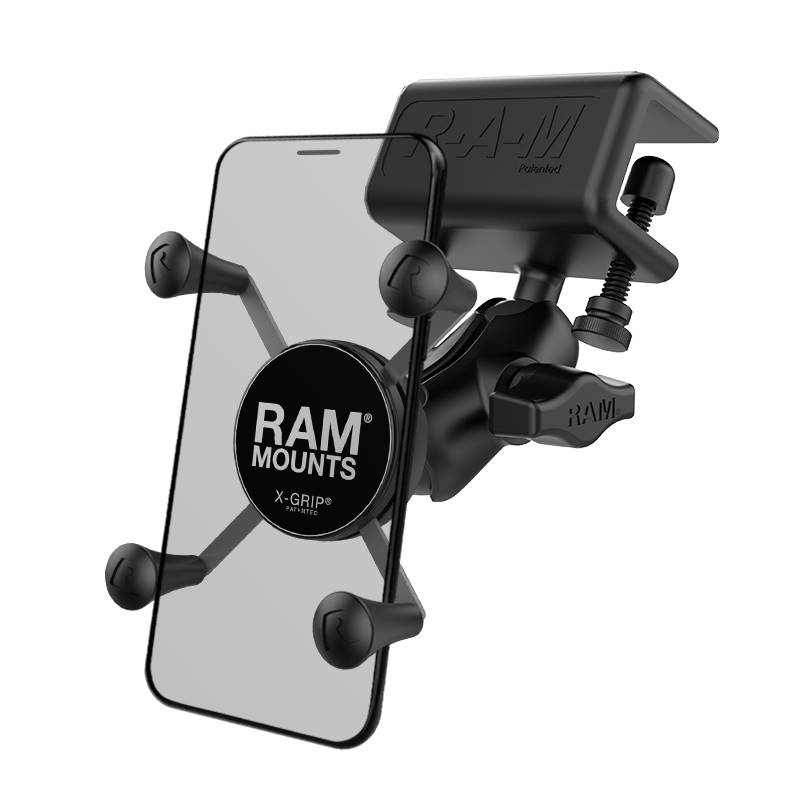

The RAM-B-177-UN7U consists of a glare shield clamp base, short double socket arm and universal
spring loaded X-Grip cradle for cell phones. Simply locate the clamp on any clamping surface up to
5/8" thick and gently snug the nylon thumb screws. The mount is designed with a RAM 1" diameter
patented rubber ball and socket system that has adjustment points at both ends of the double socket
arm; this allowing for almost infinite adjustment and perfect viewing angles. The included X-Grip
cradle has a clean and clever four leg design that sports great holding power without hiding your
phone behind foam pads and plastic. The spring loaded X-Grip cradle expands and contracts, allowing
for a perfect custom fit of your cell phone. The perfect complement to the modern sleek interior of
today's vehicles, the RAM X-Grip is the cell phone cradle evolved. The X-Grip includes a device
tether recommended for outdoor applications. The cradle is compatible with handheld devices that
will fit the dimensions listed below. It is important to verify the dimensions of your handheld
device with a case/sleeve/skin when determining the overall size.
HARDWARE INCLUDED
(1) Optional Tether
(1) Glue Tube for Rubber Caps
(2) 1/4"-20 x 1.25" Composite Thumb Screws
(2) Rubber Caps
(1) 1.93" x 3.06" Rubber Adhesive Pad
HOLDER DIMENSIONS
Width Range: 1.875" - 3.25"
Depth Range: .875" max
CLAMP RANGE
.625" max
SOCKET-TO-SOCKET LENGTH
1.75"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
High strength composite
Stainless steel
PACKAGING TYPE
Poly Bag
ADDITIONAL INFORMATION
WEIGHT
0.73 lbs.
spring loaded X-Grip cradle for cell phones. Simply locate the clamp on any clamping surface up to
5/8" thick and gently snug the nylon thumb screws. The mount is designed with a RAM 1" diameter
patented rubber ball and socket system that has adjustment points at both ends of the double socket
arm; this allowing for almost infinite adjustment and perfect viewing angles. The included X-Grip
cradle has a clean and clever four leg design that sports great holding power without hiding your
phone behind foam pads and plastic. The spring loaded X-Grip cradle expands and contracts, allowing
for a perfect custom fit of your cell phone. The perfect complement to the modern sleek interior of
today's vehicles, the RAM X-Grip is the cell phone cradle evolved. The X-Grip includes a device
tether recommended for outdoor applications. The cradle is compatible with handheld devices that
will fit the dimensions listed below. It is important to verify the dimensions of your handheld
device with a case/sleeve/skin when determining the overall size.
HARDWARE INCLUDED
(1) Optional Tether
(1) Glue Tube for Rubber Caps
(2) 1/4"-20 x 1.25" Composite Thumb Screws
(2) Rubber Caps
(1) 1.93" x 3.06" Rubber Adhesive Pad
HOLDER DIMENSIONS
Width Range: 1.875" - 3.25"
Depth Range: .875" max
CLAMP RANGE
.625" max
SOCKET-TO-SOCKET LENGTH
1.75"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
High strength composite
Stainless steel
PACKAGING TYPE
Poly Bag
ADDITIONAL INFORMATION
WEIGHT
0.73 lbs.
Cradle Dimensions:
- Minimum Width = 1.875" (Minimum Height = 4.25")
- Maximum Width = 3.25" (Minimum Height = 2.25")
- Depth = 0.875"
Purchase Includes:
- (QTY. 1), Optional Tether Included
- Material:Powder Coated Marine Grade Aluminum, Marine Grade Stainless Steel Components &
High Strength Composite - Ball Size:B Size 1" Rubber Ball
- Note:The "U" in the part number reflects product packaged in poly bag. RAM highly recommends using the provided Tether for all open cockpit applications while using this product.
- Mount will attach to flat surfaces with the following dimensions:Min: 4.4mm / 0.17" - Max: 28.0mm / 1.12"
- Weight:0.73 lbs.
