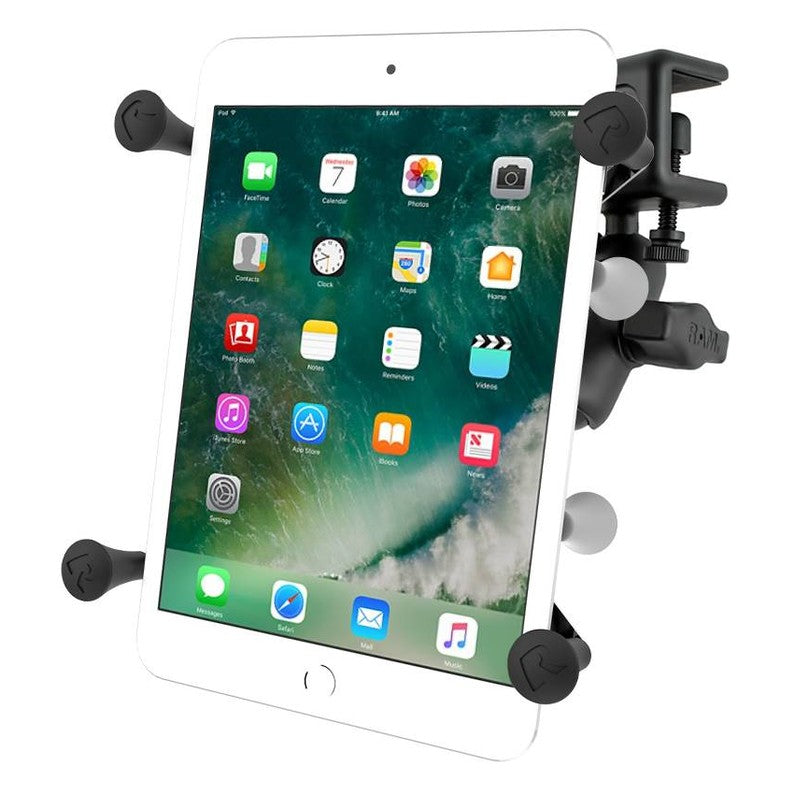

The RAM-B-177-UN8U consists of a glare shield clamp base, double socket arm and universal spring
loaded X-Grip cradle for 7"-8" tablets. Simply locate the clamp on any clamping surface up to 5/8"
thick and gently snug the nylon thumb screws. The mount is designed with a RAM 1" diameter patented
rubber ball and socket system that has adjustment points at both ends of the double socket arm; this
allowing for almost infinite adjustment and perfect viewing angles. The spring loaded X-Grip cradle
expands and contracts, allowing for a perfect custom fit of your 7"-8" tablet. Included are extra
easy access grip knobs, located on the back of the cradle for quick release of your tablet. The
X-Grip includes a device tether recommended for outdoor applications. The cradle is compatible with
handheld devices that will fit the dimensions listed below. It is important to verify the dimensions
of your handheld device with a case/sleeve/skin when determining the overall size.
HARDWARE INCLUDED
(1) Optional Tether
(1) Glue Tube for Rubber Caps
(2) 1/4"-20 x 1.25" Composite Thumb Screws
(2) Rubber Caps
(1) 1.93" x 3.06" Rubber Adhesive Pad
HOLDER DIMENSIONS
Width Range: 2.5" - 5.75"
Depth Range: .875" max
CLAMP RANGE
.625" max
SOCKET-TO-SOCKET LENGTH
1.75"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
High strength composite
PACKAGING TYPE
Poly Bag
ADDITIONAL INFORMATION
WEIGHT
0.82 lbs.
loaded X-Grip cradle for 7"-8" tablets. Simply locate the clamp on any clamping surface up to 5/8"
thick and gently snug the nylon thumb screws. The mount is designed with a RAM 1" diameter patented
rubber ball and socket system that has adjustment points at both ends of the double socket arm; this
allowing for almost infinite adjustment and perfect viewing angles. The spring loaded X-Grip cradle
expands and contracts, allowing for a perfect custom fit of your 7"-8" tablet. Included are extra
easy access grip knobs, located on the back of the cradle for quick release of your tablet. The
X-Grip includes a device tether recommended for outdoor applications. The cradle is compatible with
handheld devices that will fit the dimensions listed below. It is important to verify the dimensions
of your handheld device with a case/sleeve/skin when determining the overall size.
HARDWARE INCLUDED
(1) Optional Tether
(1) Glue Tube for Rubber Caps
(2) 1/4"-20 x 1.25" Composite Thumb Screws
(2) Rubber Caps
(1) 1.93" x 3.06" Rubber Adhesive Pad
HOLDER DIMENSIONS
Width Range: 2.5" - 5.75"
Depth Range: .875" max
CLAMP RANGE
.625" max
SOCKET-TO-SOCKET LENGTH
1.75"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
High strength composite
PACKAGING TYPE
Poly Bag
ADDITIONAL INFORMATION
WEIGHT
0.82 lbs.
Cradle Dimensions:
- Minimum Width = 2.5" (Minimum Height = 7")
- Maximum Width = 5.75" (Minimum Height = 4")
- Depth = 0.875"
Purchase Includes:
- (QTY. 1), Optional Tether Included
- Material:Powder Coated Marine Grade Aluminum, Marine Grade Stainless Steel Components &
High Strength Composite - Ball Size:B Size 1" Rubber Ball
- Note:The "U" in the part number reflects product packaged in poly bag.
- Mount will attach to flat surfaces with the following dimensions:Min: 4.4mm / 0.17" - Max: 28.0mm / 1.12"
- Weight:0.82 lbs.
