RAM X-Grip Mount with Glare Shield Clamp
RAM X-Grip Mount with Glare Shield Clamp
Regular price
$147.99 USD
Regular price
Sale price
$147.99 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
B Size 1"
UPC:
793442940774
Mfg Part #:
RAM-B-177-UN9U
Availability:
Out Of Stock
Part Number:
RAM-B-177-UN9U
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components

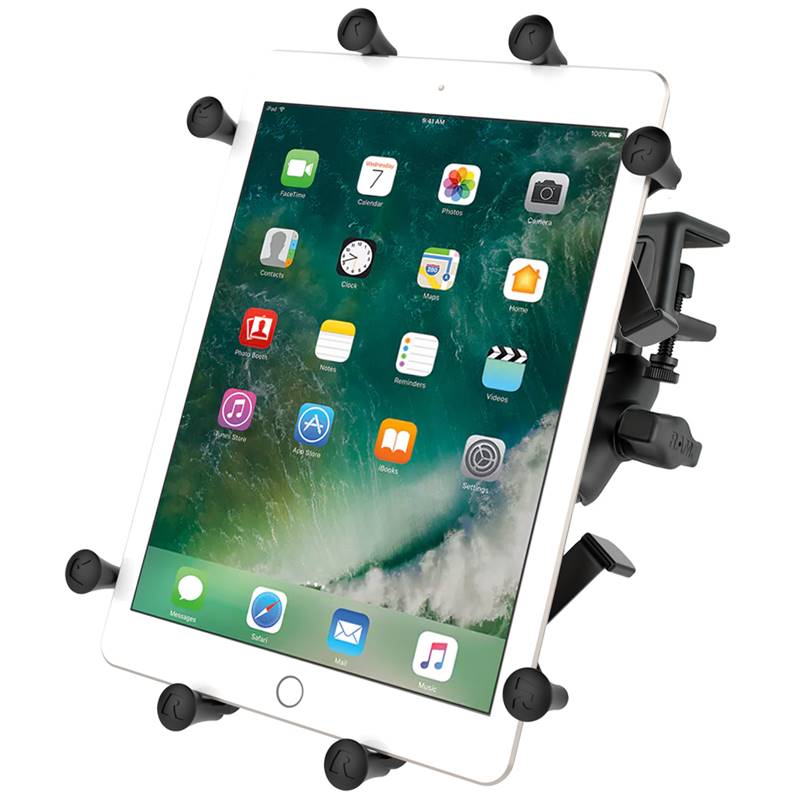

The RAM-B-177-UN9U consists of a glare shield clamp base, double socket arm, round base adapter and
universal X-Grip III cradle. The mount is designed with a RAM 1" diameter patented rubber ball and
socket system that has adjustment points at both ends of the double socket arm; this allowing for
almost infinite adjustment and perfect viewing angles. The X-Grip III clamping cradle consists of a
composite spring loaded cradle, expandable grip arms and additional bottom support keeper. Included
are extra easy access grip knobs, located on the back of the cradle for quick release of your
tablet. The X-Grip III clamping cradle expands and contracts for perfect fit of most 10" tablets
with or without sleeves, as well as some smaller tablets. Please verify dimensions of your tablet
below for compatibility with the X-Grip III.
HARDWARE INCLUDED
Assembly Hardware
(2) 1/4"-20 x 1.25" Composite Thumb Screws
(2) Rubber Caps
(1) 1.93" x 3.06" Rubber Adhesive Pad
HOLDER DIMENSIONS
Max Height: 10.25" (using optional supports)
Width Range: 6.25" - 8.1"
Max Depth: .875"
CLAMP RANGE
.625" max
SOCKET-TO-SOCKET LENGTH
1.75"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
High strength composite
PACKAGING TYPE
Poly Bag
WEIGHT
1.75 lbs.
universal X-Grip III cradle. The mount is designed with a RAM 1" diameter patented rubber ball and
socket system that has adjustment points at both ends of the double socket arm; this allowing for
almost infinite adjustment and perfect viewing angles. The X-Grip III clamping cradle consists of a
composite spring loaded cradle, expandable grip arms and additional bottom support keeper. Included
are extra easy access grip knobs, located on the back of the cradle for quick release of your
tablet. The X-Grip III clamping cradle expands and contracts for perfect fit of most 10" tablets
with or without sleeves, as well as some smaller tablets. Please verify dimensions of your tablet
below for compatibility with the X-Grip III.
HARDWARE INCLUDED
Assembly Hardware
(2) 1/4"-20 x 1.25" Composite Thumb Screws
(2) Rubber Caps
(1) 1.93" x 3.06" Rubber Adhesive Pad
HOLDER DIMENSIONS
Max Height: 10.25" (using optional supports)
Width Range: 6.25" - 8.1"
Max Depth: .875"
CLAMP RANGE
.625" max
SOCKET-TO-SOCKET LENGTH
1.75"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
High strength composite
PACKAGING TYPE
Poly Bag
WEIGHT
1.75 lbs.
Cradle Dimensions:
- Minimum Width = 6.25"
- Maximum Width = 8.1"
- Maximum Length (using additional supports) = 10.25"
- Depth = 0.875"
Purchase Includes:
- (QTY. 1), Optional Tether Included
- Material:Powder Coated Marine Grade Aluminum &
High Strength Composite - Ball Size:B Size 1" Rubber Ball
- Note:The "U" in the part number reflects product packaged in poly bag.
- Mount will attach to flat surfaces with the following dimensions:Min: 4.4mm / 0.17" - Max: 28.0mm / 1.12"
- Weight:1.75 lbs.
