RAM Glare Shield Clamp Mount with Diamond Pl
RAM Glare Shield Clamp Mount with Diamond Pl
Regular price
$49.99 USD
Regular price
Sale price
$49.99 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
B Size 1"
UPC:
793442907067
Mfg Part #:
RAM-B-177U
Availability:
Out Of Stock
Part Number:
RAM-B-177U
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components

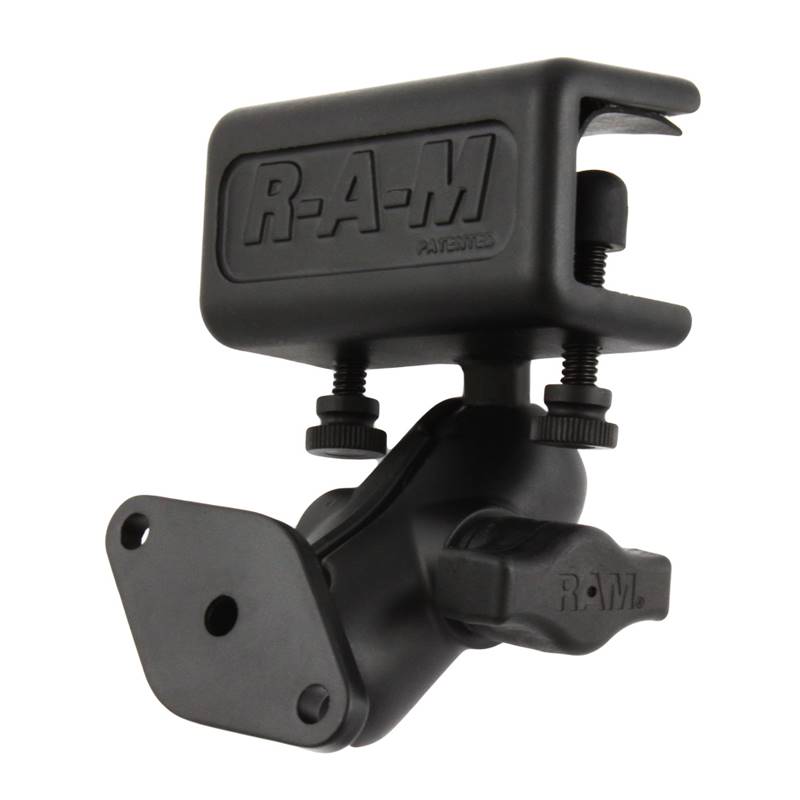

The RAM-B-177U consists of a glare shield clamp base, short double socket arm and diamond base
adapter. The RAM-B-177U is designed to mount to the lip edge of a flat surface up to 5/8" thick.
Popular mounting edges include a car side window edge lip or glare shield on an airplance. The base
has two composite bolts that, when tightened, clamp the base to the lip surface. A RAM 1" diameter
rubber ball is connected to the base allowing you to connect a RAM 1" diamter arm socket and
connection plates to create the perfect mount for your application. The hole pattern found on the
diamond base adapter will connect to most RAM cradles.
HARDWARE INCLUDED
(2) 1/4"-20 x 1.25" Composite Thumb Screws
(2) Rubber Caps
(1) 1.93" x 3.06" Rubber Adhesive Pad
CLAMP RANGE
.625" max
SOCKET-TO-SOCKET LENGTH
1.75"
HOLE PATTERN
2-Hole AMPS: 1.912"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
0.61 lbs.
adapter. The RAM-B-177U is designed to mount to the lip edge of a flat surface up to 5/8" thick.
Popular mounting edges include a car side window edge lip or glare shield on an airplance. The base
has two composite bolts that, when tightened, clamp the base to the lip surface. A RAM 1" diameter
rubber ball is connected to the base allowing you to connect a RAM 1" diamter arm socket and
connection plates to create the perfect mount for your application. The hole pattern found on the
diamond base adapter will connect to most RAM cradles.
HARDWARE INCLUDED
(2) 1/4"-20 x 1.25" Composite Thumb Screws
(2) Rubber Caps
(1) 1.93" x 3.06" Rubber Adhesive Pad
CLAMP RANGE
.625" max
SOCKET-TO-SOCKET LENGTH
1.75"
HOLE PATTERN
2-Hole AMPS: 1.912"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
0.61 lbs.
- Material:Powder Coated Marine Grade Aluminum
- Ball Size:B Size 1" Rubber Ball
- Note:The "U" in the part number reflects product packaged in poly bag.
- Mount will attach to flat surfaces with the following dimensions:Min: 4.4mm / 0.17" - Max: 28.0mm / 1.12"
- Weight:0.61 lbs.
