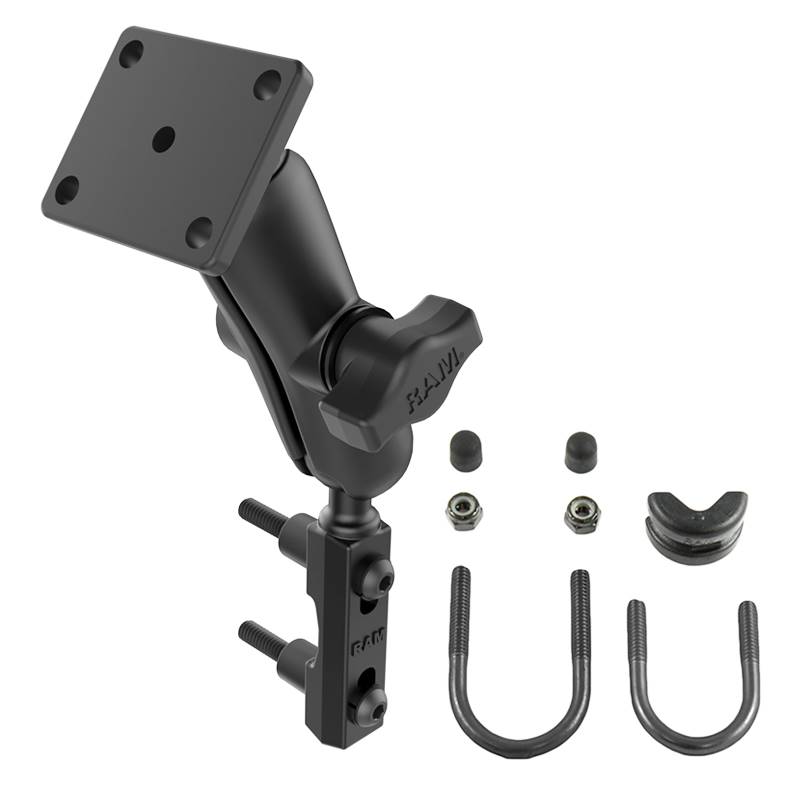

RAM Brake/Clutch Reservoir Mount for Garmin

This motorcycle mount makes attaching to handlebars, tubing, or railing a breeze. Simple to install
and easy to use, the possibilities become endless. The zinc coated metal u-bolt and nuts included
are designed it fit motorcycle handlebars, or circular rail that are 0.50" to 1.25" in diameter.
Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.
High quality materials insure your GPS is safe, secure, and within easy reach. RAM’s patented design
also dampens shock and vibration helping to extend the life of your mobile device. This product can
mount to both the brake/clutch reservoir or any round rail that is 0.5" to 1.25" in diameter. To see
if the base will mount to your motorcycle, check the hole spacing of the base against your
clutch/brake reservoir. The holes centers have a minimum width of 0.94" and a maximum of 1.58".

HARDWARE INCLUDED
(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

CLAMP RANGE
.5" - 1.25" diameter

SOCKET-TO-SOCKET LENGTH
3"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"

PLATE SIZE
2" X 1.7"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

WEIGHT
0.85 lbs.
