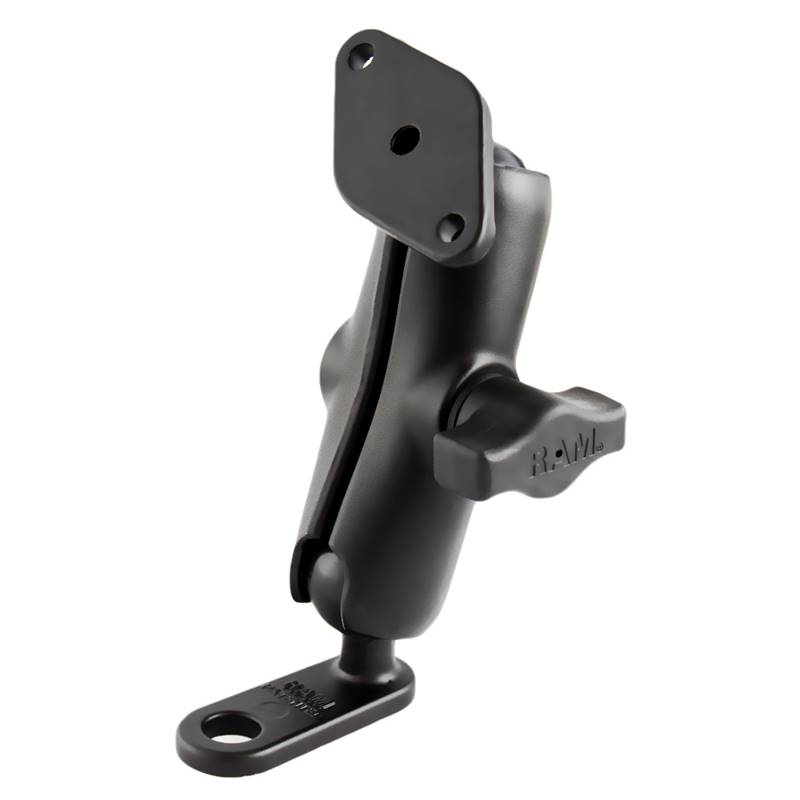

RAM Double Ball Mount with 11mm Bolt Head Ad

The RAM-B-179U consists of a 1" diameter ball base, connected to a 2.25" x 0.875" base with 11mm
hole, double socket arm and diamond base adapter. This mount is often used on motorcycles, attaching
to the mirror frame, most commonly found on BMW motorcycles. as well as many handlebar pinchbolts
with a washer (base is 5mm thick). The 2.43" x 1.31" diamond base contains two holes 1.912" from
center to center, matches the industry standard AMPS hole pattern and will connect to a large
variety of RAM Mount and third party cradles. The mount is designed with a RAM 1" diameter patented
rubber ball and socket system that has adjustment points at both ends of the double socket arm; this
allowing for almost infinite adjustment and perfect viewing angles.

SOCKET-TO-SOCKET LENGTH
3"

HOLE PATTERN
2-Hole AMPS: 1.912"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

WEIGHT
0.45 lbs.
