RAM ATV/UTV Rail Mount with 9mm An

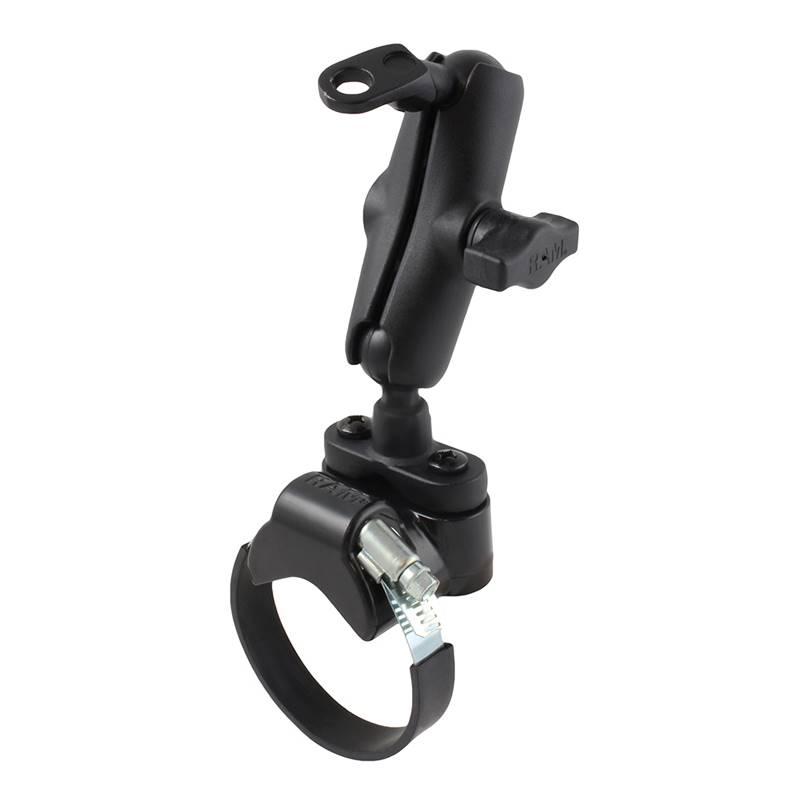

The RAM-B-180-231Z-2NUBU consists of a steel strap base, u-bolt bases, double socket arm and 1"
diameter ball base with 9mm hole. Designed for a clean installation, the RAM strap mount will
accommodate most common rollbar sizes on UTV's, allowing for the placement of the RAM rubber ball
base. This mount can also be attached to smaller diameter handlebars on ATV's using the included
hardware. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that
has adjustment points at both ends of the double socket arm; this allowing for almost infinite
adjustment and perfect viewing angles.

HARDWARE INCLUDED
(1) Strap Clamp Adapter
(2) 1/4"-20 x 1" Machine Screws
(2) 1/4"-20 Nylock Nuts
(1) Zinc Worm Drive Strap Clamp
(1) 6" Rubber Strip

CLAMP RANGE
U-Bolt: .5" - 1.25" diameter
Strap Clamp: 1.57" - 3.15" diameter

SOCKET-TO-SOCKET LENGTH
3"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

WEIGHT
0.7 lbs.
