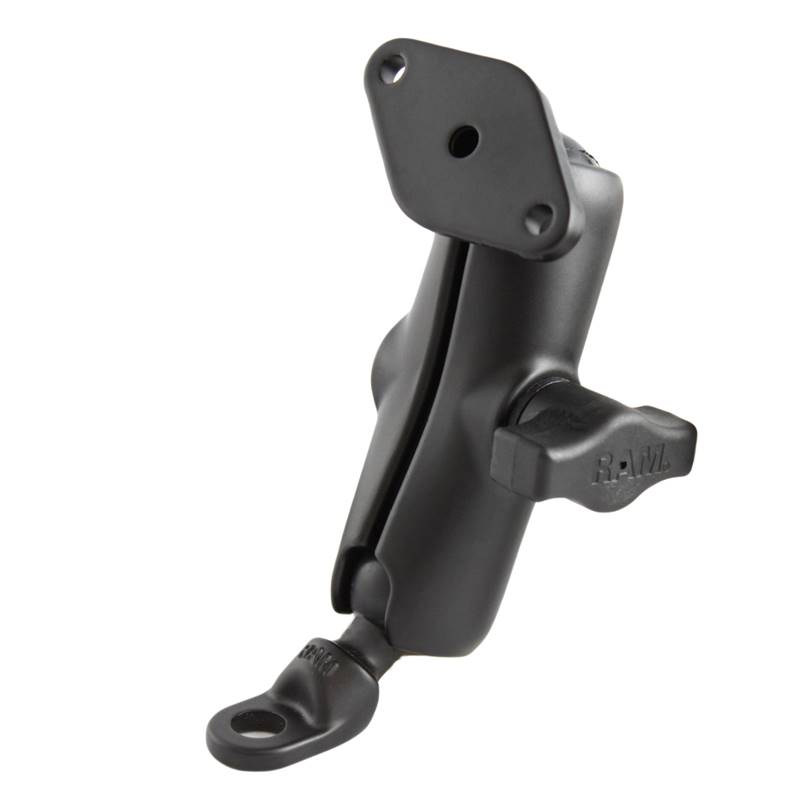

RAM Double Ball Mount with 9mm Angled Bolt H

The RAM-B-180U consists of a 1" diameter ball base with 9mm hole, double socket arm and diamond base
adapter. This mount is often used on motorcycles, attaching to the mirror frame, most commonly found
on BMW motorcycles. The 2.43" x 1.31" diamond base contains two holes 1.912" from center to center,
matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and
third party cradles. The mount is designed with a RAM 1" diameter patented rubber ball and socket
system that has adjustment points at both ends of the double socket arm; this allowing for almost
infinite adjustment and perfect viewing angles.

SOCKET-TO-SOCKET LENGTH
3"

HOLE PATTERN
2-Hole AMPS: 1.912"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

WEIGHT
0.45 lbs.
