RAM Offset Reservoir Cover Double Ball Mount

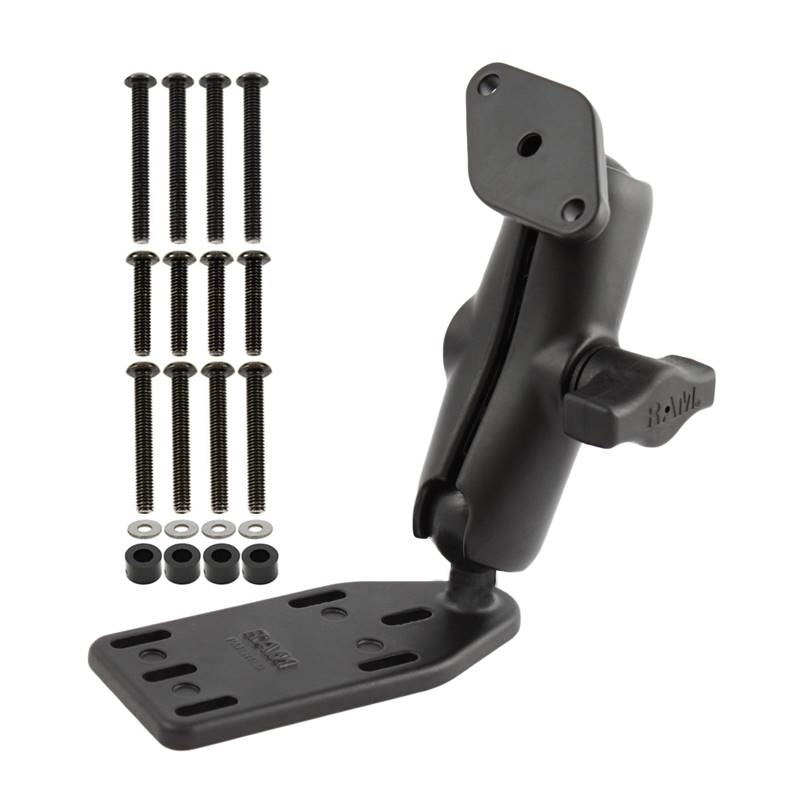

The RAM-B-183U consists of a brake/clutch reservoir cover plate (1" ball off-set), STANDARD length
double socket arm and diamond base adapter. The base fits cleanly over your existing brake/clutch
reservoir cover with the 1" ball offset. Made of die cast aluminum with an over molded rubber ball,
both form and function are unsurpassed. Installation is simple and all necessary hardware is
included. The mount is NOT an additional reservoir cover, but instead a plate shaped similarly to
the cover that mounts above the cover using the covers screw holes and longer screws. The kit
actually comes with 3 sets of screws of differing lengths. The center 2 slots are 2 7/16 inches
center to center and are just under a 1/2 inch long.

HARDWARE INCLUDED
(4) M4 x 20mm Machine Screws
(4) M4 x 30mm Machine Screws
(4) M4 x 35mm Machine Screws
(4) Nylon Spacers
(4) M4 Stainless Steel Washers

PRODUCT DIMENSIONS
Overall Height: 5"

SOCKET-TO-SOCKET LENGTH
3"

HOLE PATTERN
2-Hole AMPS: 1.912"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

ADDITIONAL INFORMATION
This mount is not compatible with the 2016 BMW R1200RT.

WEIGHT
0.51 lbs.
