RAM Handlebar U-Bolt Mount for Garmin zumo 4

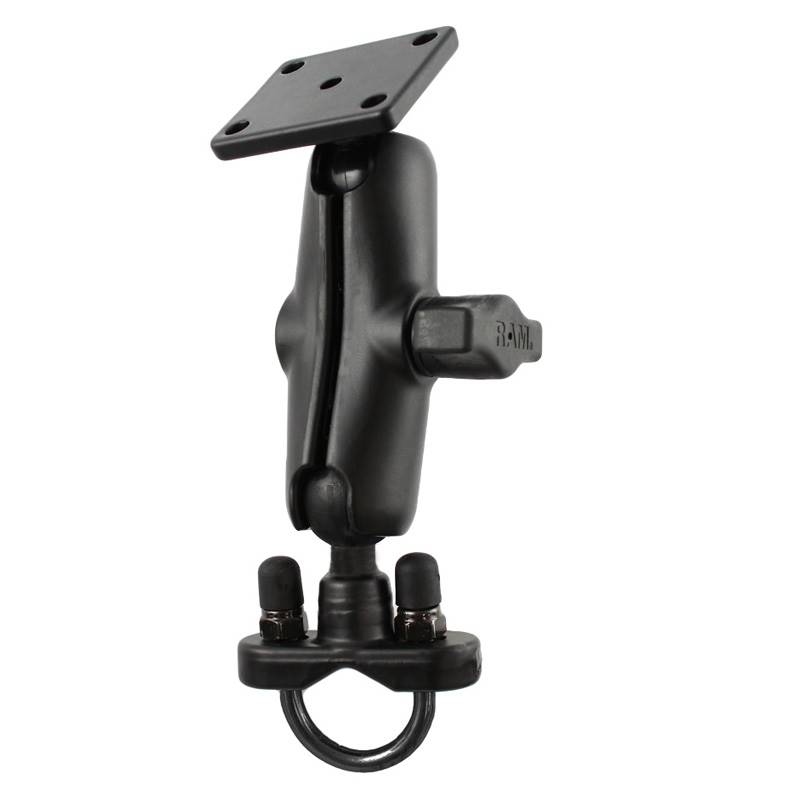

The RAM-B-184U consists of a zinc coated u-bolt base, double socket arm and 2" x 1.7" rectangular
base that contains the universal AMPs hole pattern. The diamond adapter base has a hole pattern that
matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and
third party cradles. Included in this package is hardware that will accommodate rails from 0.50" to
1.25" in diameter. A composite rail adapter can narrow the rail to a minimum width of 0.5”. The
mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment
points at both ends of the double socket arm; this allowing for almost infinite adjustment and
perfect viewing angles.

HARDWARE INCLUDED
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

CLAMP RANGE
.5" - 1.25" diameter

SOCKET-TO-SOCKET LENGTH
3"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

WEIGHT
0.65 lbs.
