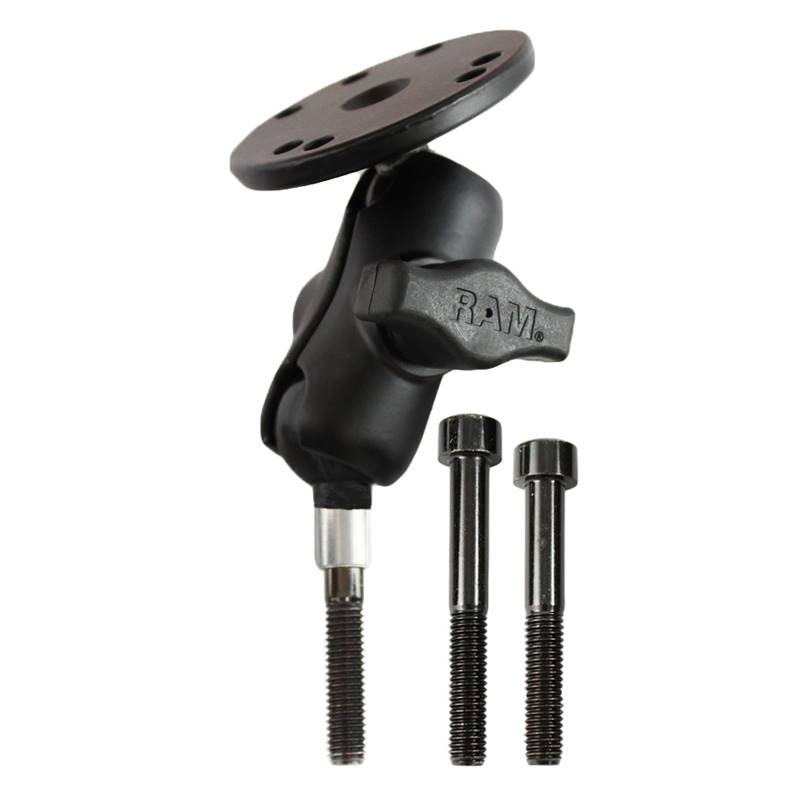

RAM Handlebar Clamp Mount with M8 Bolt

Your motorcycle rides on rubber tires for grip and to soften the ride. Why should it be any
different for your mounted electronics? With RAM's patented rubber ball and socket technology, the
turn of a single knob grips the adjustment arm to a rubber ball designed to dampen shock and
vibration. With RAM products, it's all grip and no slip plus protection for your valuable
electronics. Simply place our easy to install ball base onto the motorcycle handlebar top clamp and
you're done. After that, a world of mounting possibilities just opened up. The round base contains a
1" diameter rubber ball connected to a flat 2.5" diameter base. This mount has pre-drilled holes,
including the universal AMPS hole pattern.

HARDWARE INCLUDED
(1) M8 x 55mm Socket Head Cap Screw
(1) M8 x 60mm Socket Head Cap Screw
(1) M8 x 65mm Socket Head Cap Screw

SOCKET-TO-SOCKET LENGTH
1.75"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

ADDITIONAL INFORMATION
To determine if these bolts are compatible with your motorcycle measure the bolt for the diameter
and add 30mm to the length. If it matches one of the 55, 60, or 65 mm length, then you can use the
appropriate bolt supplied with the mount. If it does not match, you may be able to source the
correct length of bolt locally or from your BMW dealer. Be sure to use the correct torque spec when
attaching the mount.

WEIGHT
0.45 lbs.
