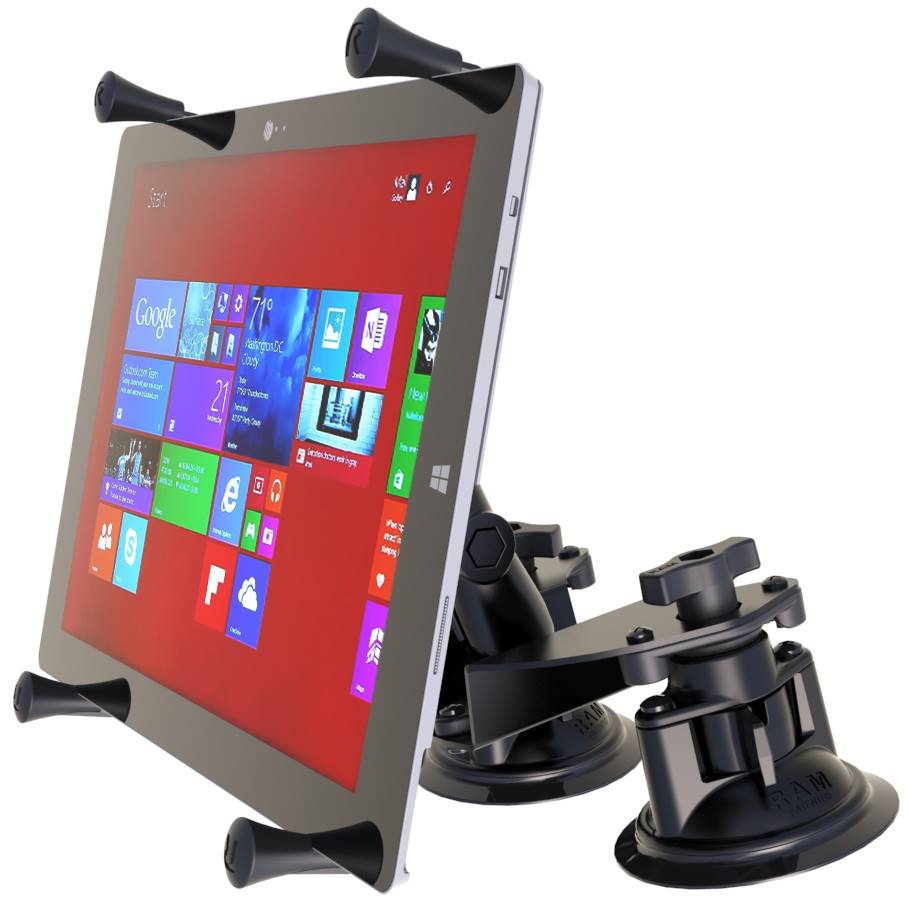

The RAM-B-189-PIV1-UN11U consists of a dual articulating 3.3" twist lock suction cup base, double
socket arm, and universal X-Grip cradle for 12" Tablets. The dual articulating suction cup base is
an amazing innovation in suction cup mounting. With the ability to independently articulate each
suction cup, this mounting base can be used in a variety of applications such as curved windows and
surfaces. Included are extra easy access grip knobs, located on the back of the cradle for quick
release of your tablet. The X-Grip cradle is compatible with devices that will fit the dimensions
listed below. It is important to verify the dimensions of your handheld device with a
case/sleeve/skin when determining the overall size.
HARDWARE INCLUDED
Assembly Hardware
HOLDER DIMENSIONS
Max Height: 10.25" (using optional supports)
Width Range: 7.25" - 8.75"
Max Depth: .875"
SUCTION SIZE
(2) 3.3" Diameter Bases, Total Width 7.95"
SOCKET-TO-SOCKET LENGTH
3"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Powder coated steel
Marine-grade aluminum
High strength composite
PACKAGING TYPE
Poly Bag
ADDITIONAL INFORMATION
FEATURES:
Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet;
fits most 12" tablets
Includes RAM Twist-Lock dual suction cup base and medium length B size RAM double socket arm;
ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength
composite for durability and reliability in the most demanding environments
Backed by a lifetime warranty
WEIGHT
2.45 lbs.
socket arm, and universal X-Grip cradle for 12" Tablets. The dual articulating suction cup base is
an amazing innovation in suction cup mounting. With the ability to independently articulate each
suction cup, this mounting base can be used in a variety of applications such as curved windows and
surfaces. Included are extra easy access grip knobs, located on the back of the cradle for quick
release of your tablet. The X-Grip cradle is compatible with devices that will fit the dimensions
listed below. It is important to verify the dimensions of your handheld device with a
case/sleeve/skin when determining the overall size.
HARDWARE INCLUDED
Assembly Hardware
HOLDER DIMENSIONS
Max Height: 10.25" (using optional supports)
Width Range: 7.25" - 8.75"
Max Depth: .875"
SUCTION SIZE
(2) 3.3" Diameter Bases, Total Width 7.95"
SOCKET-TO-SOCKET LENGTH
3"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Powder coated steel
Marine-grade aluminum
High strength composite
PACKAGING TYPE
Poly Bag
ADDITIONAL INFORMATION
FEATURES:
Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet;
fits most 12" tablets
Includes RAM Twist-Lock dual suction cup base and medium length B size RAM double socket arm;
ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength
composite for durability and reliability in the most demanding environments
Backed by a lifetime warranty
WEIGHT
2.45 lbs.
Cradle Dimensions:
- Minimum Width = 7.25”
- Maximum Width = 8.75”
- Maximum Length (WITHOUT additional supports) = Unlimited
- Maximum Length (WITH additional supports) = 10.25”
- Depth = 0.875"
- The RAM-HOL-189-PIV1-UN11U is compatible with the iPad Pro WITHOUT CASE ONLY.
- Material:High Strength Composite &
Powder Coated Marine Grade Aluminum - Ball Size:B Size 1" Rubber Ball
- Note:The "U" in the part number reflects product packaged in poly bag.
- Weight:2.45 lbs.
