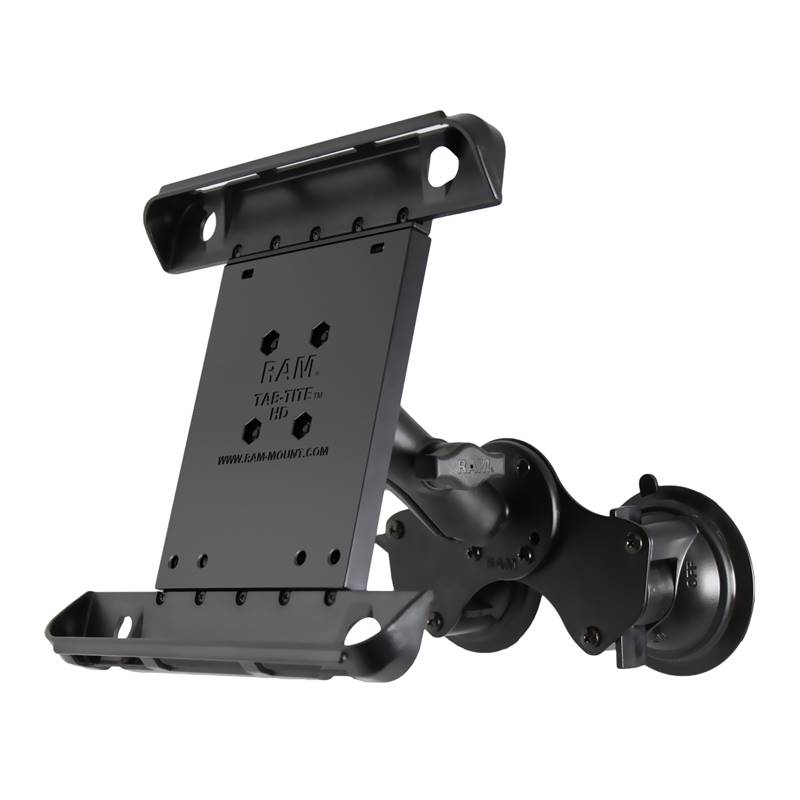

RAM Tab-Tite with Twist-Lock Dual Sucti

The RAM-B-189-TAB3U consists of a double 3.3" twist lock suction cup base, double socket arm, round
base adapter and Tab-Tite universal clamping cradle. The suction cup base is designed to have a
strong hold on glass and non-porous plastic surfaces. The mount is designed with a RAM 1" diameter
patented rubber ball and socket system that has adjustment points at both ends of the double socket
arm; this allowing for almost infinite adjustment and perfect viewing angles. The spring loaded Tab-
Tite cradle makes it easy to load and unload your tablet, along with keeping it secure while on the
go. Interchangeable cup ends are designed to optimize the functionality of your tablet, allowing
access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended.
The Tab-Tite cradle is compatible with any tablet that will fit the dimensions listed below. It is
important to verify the dimensions of your tablet when determining the overall size.

HARDWARE INCLUDED
Assembly Hardware

HOLDER DIMENSIONS
Height Range: 8.5" - 11.125"
Width Range: 6.38" - 7.75"
Depth Range: .13" - .56"

SUCTION SIZE
(2) 3.3" Diameter Bases, Total Width 7.95"

SOCKET-TO-SOCKET LENGTH
3"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Powder coated steel
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

FEATURES:
Spring-loaded holder secures the iPad (1st, 2nd, 3rd, and 4th Gen) without case and more;
interchangeable end cups allow you to modify the holder when upgrading devices

Includes RAM Twist-Lock dual suction cup base and medium length B size RAM double socket arm with
retention knob; ball and socket technology allows for near-infinite adjustability

Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength
composite for durability and reliability in the most demanding environments

Backed by a lifetime warranty


WEIGHT
1.8 lbs.
