RAM Drill-Down Double Ball Mount fo
RAM Drill-Down Double Ball Mount fo
Regular price
$33.99 USD
Regular price
Sale price
$33.99 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
B Size 1"
UPC:
793442947995
Mfg Part #:
RAM-B-202-379-M616U
Availability:
In Stock
Part Number:
RAM-B-202-379-M616U
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components

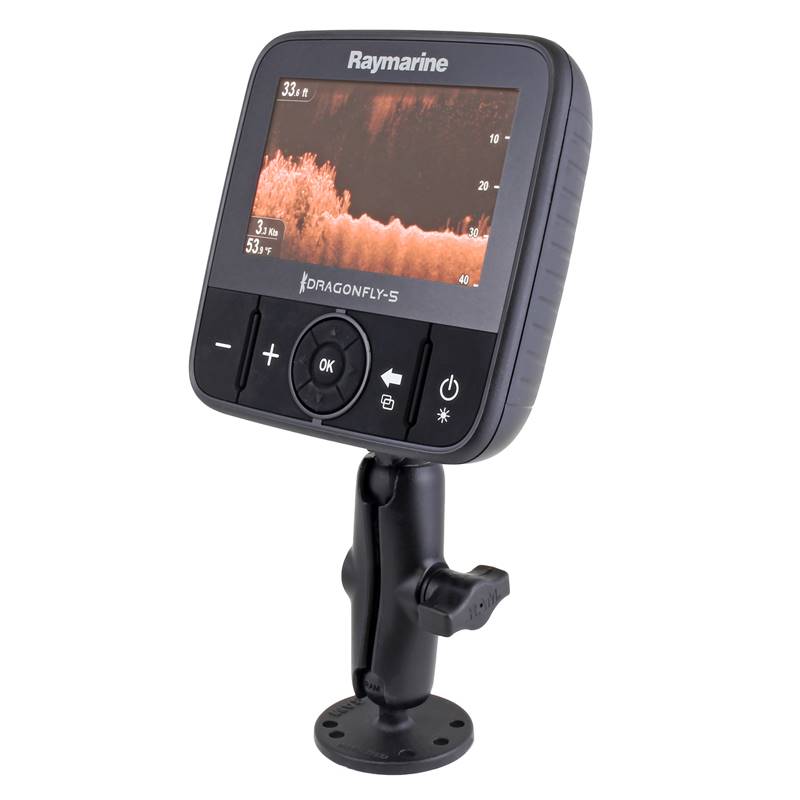

The RAM-B-202-379-M616U consists of a 2.5" diameter round base with the universal AMPS hole pattern,
STANDARD size double socket arm and 1" diameter ball, containing a M6 x 30 SS HEX head bolt. The
mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment
points at both ends of the double socket arm; this allowing for almost infinite adjustment and
perfect viewing angles. The RAM-B-202-379-M616 reduces the mounting footprint, compared to old
dragonfly units that contain a large neck. This mount allows for a seamless marriage of RAM
components into your Raymarine system, opening up the ball and socket system and all of our mounting
options to you.
SOCKET-TO-SOCKET LENGTH
3"
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
PLATE SIZE
2.5" Diameter
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
High strength composite
PACKAGING TYPE
Poly Bag
WEIGHT
0.48 lbs.
STANDARD size double socket arm and 1" diameter ball, containing a M6 x 30 SS HEX head bolt. The
mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment
points at both ends of the double socket arm; this allowing for almost infinite adjustment and
perfect viewing angles. The RAM-B-202-379-M616 reduces the mounting footprint, compared to old
dragonfly units that contain a large neck. This mount allows for a seamless marriage of RAM
components into your Raymarine system, opening up the ball and socket system and all of our mounting
options to you.
SOCKET-TO-SOCKET LENGTH
3"
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
PLATE SIZE
2.5" Diameter
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
High strength composite
PACKAGING TYPE
Poly Bag
WEIGHT
0.48 lbs.
- Material:High Strength Composite &
Powder Coated Marine Grade Aluminum - Ball Size:B Size 1" Rubber Ball
- Note:The "U" in the part number reflects product packaged in poly bag. Raymarine device not included with purchase.
- Weight:0.48 lbs.
