RAM Drill-Down Mount with 1/4"-20 Thre

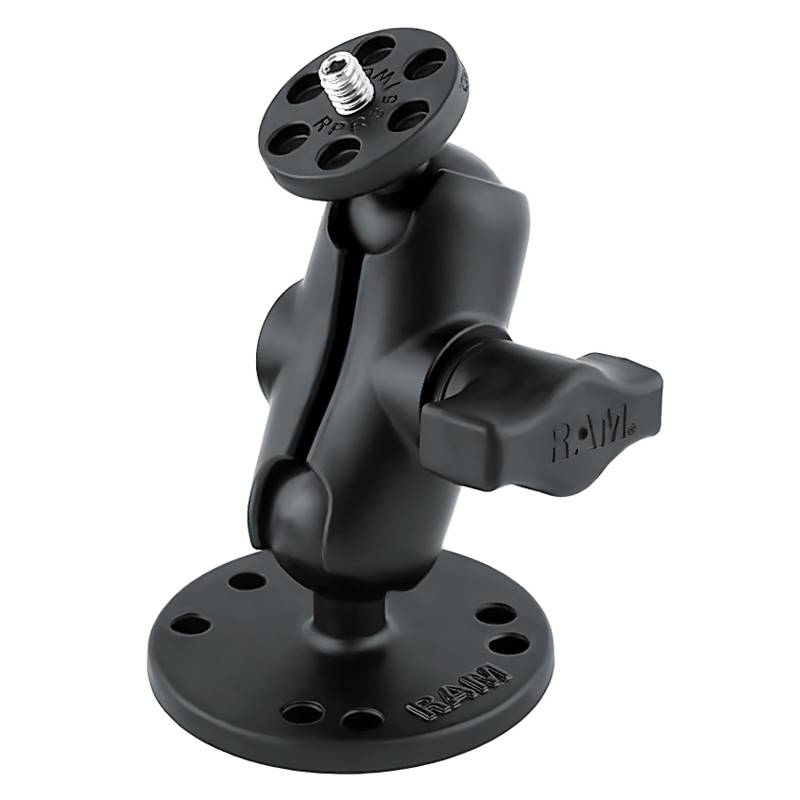

The RAM-B-202-A-366U consists of a 2.5" diameter round base that contain the universal AMPS hole
pattern, SHORT double socket arm and 1" ball, connected to a round plate with 1/4"-20 camera thread.
The male 1/4"-20 threaded steel stud will connect to any standard female thread found on camcorders,
digital cameras and POV cameras. The mount is designed with a RAM 1" diameter patented rubber ball
and socket system that has adjustment points at both ends of the double socket arm; this allowing
for almost infinite adjustment and perfect viewing angles.

SOCKET-TO-SOCKET LENGTH
1.75"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

PLATE SIZE
2.5" Diameter

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

WEIGHT
0.36 lbs.
