RAM-B-202-G4-TRA1U RAM Track Ball Mount for Garmin Stri

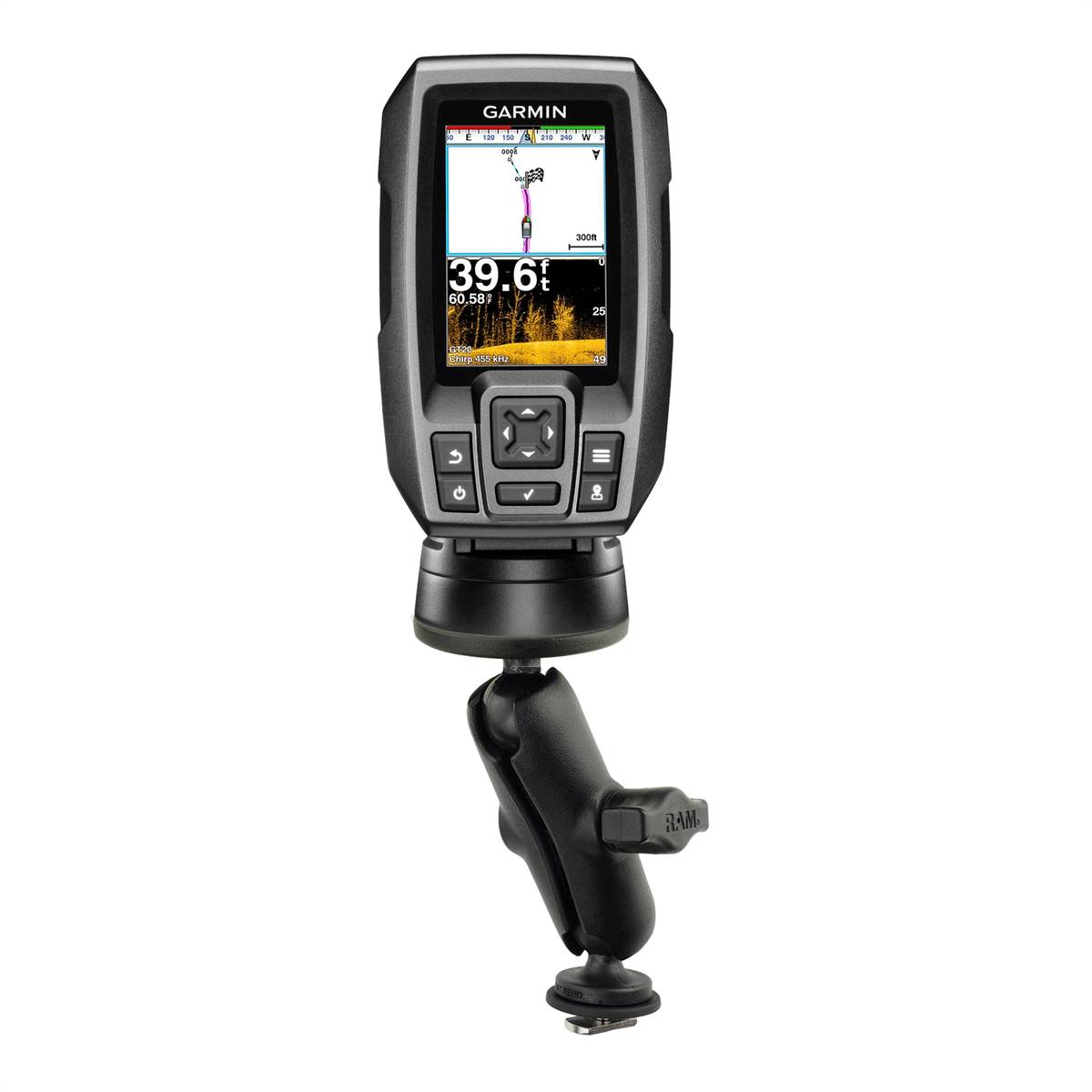

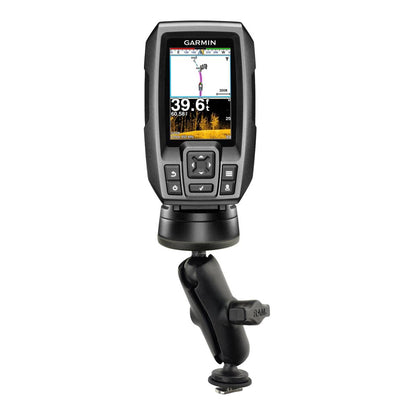

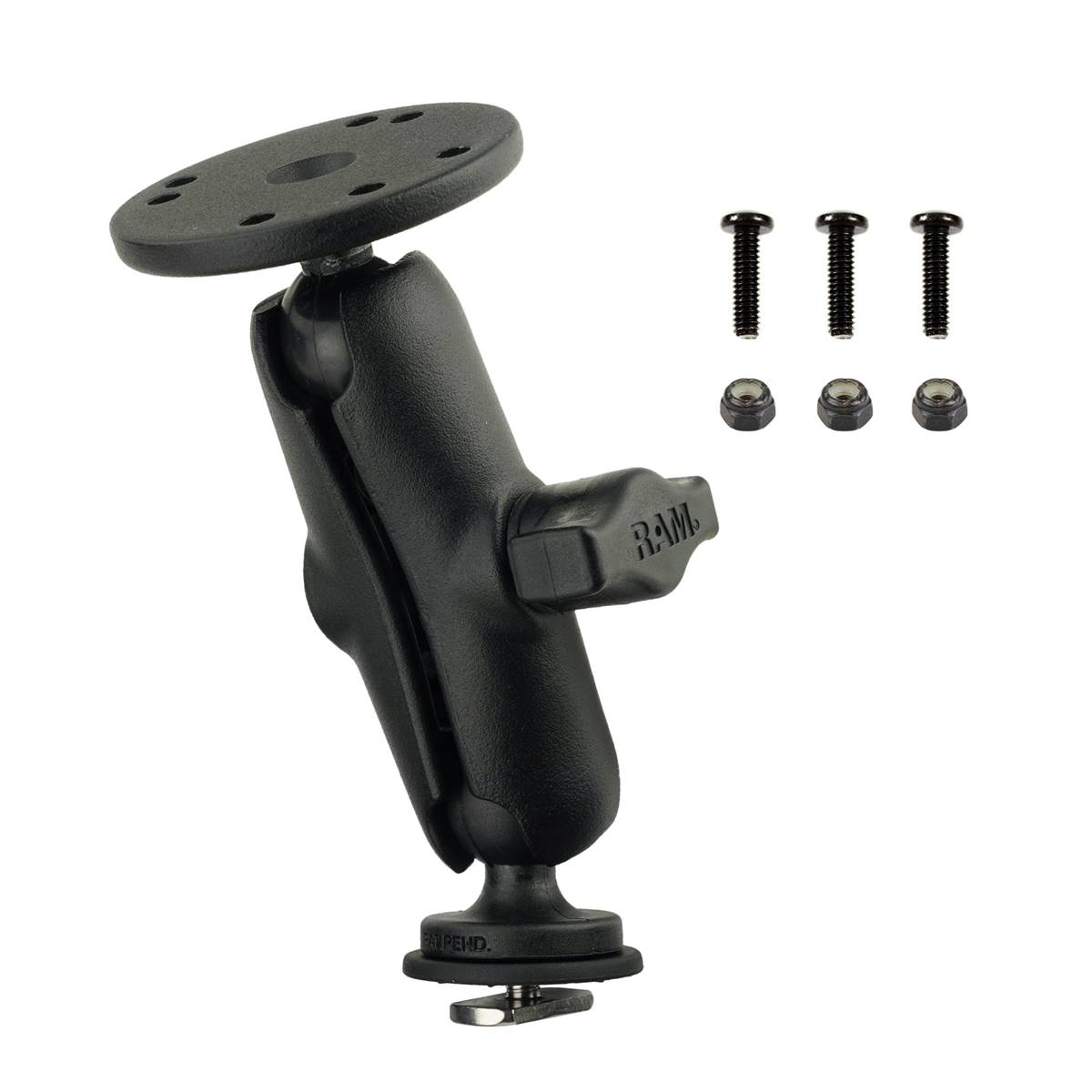

This RAM Track Ball bundle includes the RAM Track Ball, the RAM Double Socket B Size Arm, and the RAM Round Plate with Ball & Mounting Hardware for Garmin Striker and other fishfinder models. The RAM Track Ball consists of a B size 1" rubber ball molded to a high-strength composite base, a rubber friction washer, and a stainless steel T-bolt for sliding into virtually any track system. Simply insert or slide the RAM Track Ball into your track and twist the ball clockwise to tighten in place. Twist counterclockwise to loosen or adjust the ball. The included, RAM-B-201U consists of a medium length double socket arm that accommodates 1" B size ball bases, device holders, and adapters. The easy-to-adjust knob allows for near-infinite adjustability for your connected device. The RAM-B-202-G4U consists of a 1" diameter rubber ball connected to a flat 2.5" diameter base. This mount has pre-drilled holes, including the universal AMPS hole pattern. Included are 3x (#8-32 x 5/8” PH PD Mach Screws) and 3x (#8-32 SS Nylock Nuts) that will connect the RAM-202-G4U to the bottom of the Garmin echo and Striker 4 Series.

FEATURES

Designed for track mounting systems including the RAM Tough-Track; includes 1" B size rubber ball

Features a rubber friction washer and a stainless steel T-bolt; simply insert into your track and twist the ball clockwise to tighten

Standard RAM double socket arm provides an ideal overall length of 3.73" and a socket-to-socket length of 3"

Made of high-strength composite and steel components for durability and reliability in the most demanding environments

Backed by a lifetime warranty

hardware included
(3) #8-32 x 5/8" Machine Screws(3) #8-32 Nylock Nuts

t bolt dimensions
.48" x .95"

socket to socket length
3"

hole pattern
4-Hole AMPS: 1.181" x 1.496"3-Hole 120-Degree: 1.812" Diameter

ball size
B Size (1")

weight capacity
Standard Use: 2 lbsHeavy-Duty Use: 1 lb

materials
Marine-grade aluminumHigh strength composite

packaging type
Poly Bag

Weight
0.58 lb
