RAM X-Grip Holder with Ball for 9"-11" T

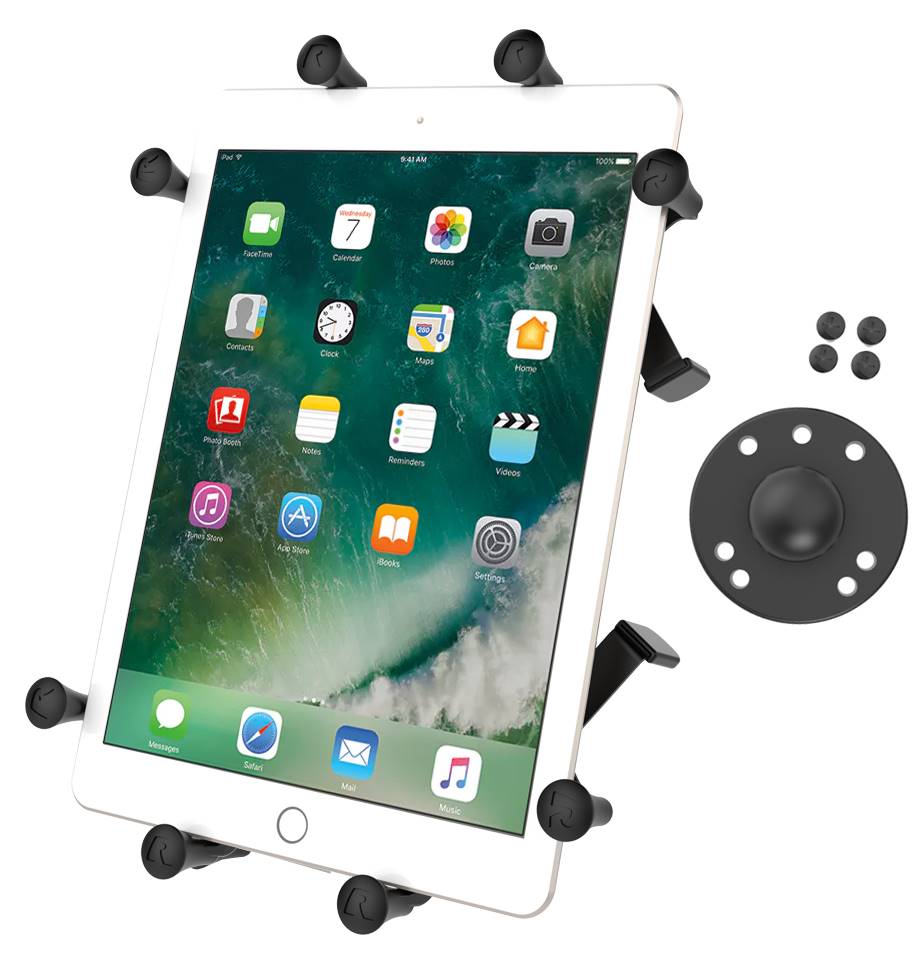

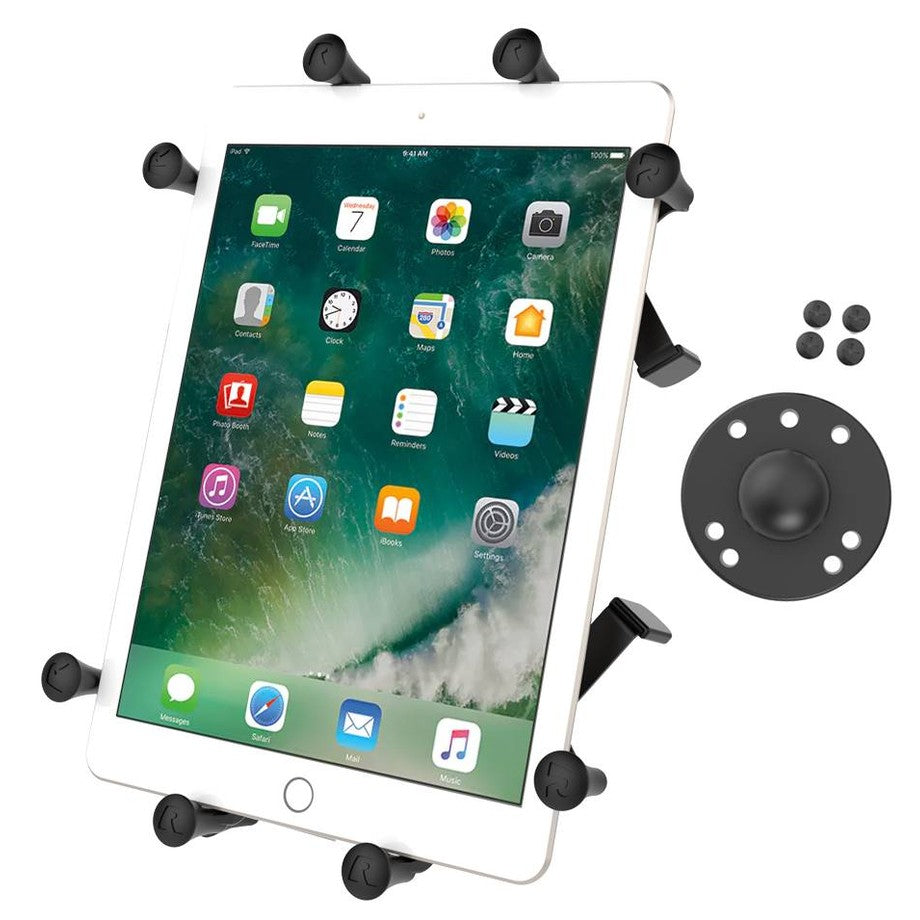

The RAM-B-202-UN9U consists of a composite spring loaded cradle, expandable grip arms, additional
bottom support keepers and 1" ball base adapter. Included are extra easy access grip knobs, located
on the back of the cradle for quick release of your tablet. The RAM-B-202-UN9U expands and contracts
for perfect fit of most 10" tablets with or without sleeves, as well as some smaller tablets. The
included 1" ball base includes hardware to attach directly to the back of the cradle and is
compatible with all "B" size double socket arms. Please verify dimensions of your tablet below for
compatibility with the X-Grip. The X-Grip cradle is compatible with tablets devices that will fit
the dimensions listed below. It is important to verify the dimensions of your tablet with a
case/sleeve/skin when determining the overall size.

HARDWARE INCLUDED
Assembly Hardware

HOLDER DIMENSIONS
Max Height: 10.25" (using optional supports)
Width Range: 6.25" - 8.1"
Max Depth: .875"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

FEATURES:
Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet;
fits most 9"-10" tablets

Included round plate features B size 1" RAM rubber ball and allows for connection to any B size
RAM double socket arm

Made of powder-coated, marine-grade aluminum and high-strength composite for durability and
reliability in the most demanding environments

Backed by a lifetime warranty


WEIGHT
1.2 lbs.
