RAM Double Ball Adapter with Round Base - B

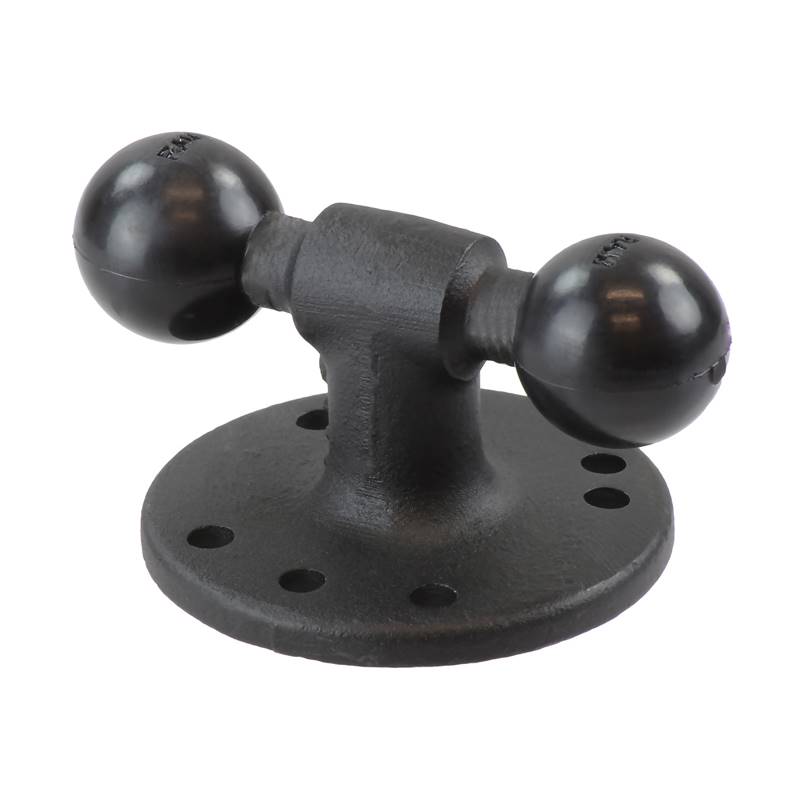

The RAM-B-217U consists of two 1" diameter rubber balls connected to a post and 2.5" diameter round
base. The round base has pre-drilled holes, including the universal AMPs hole pattern and 3-hole 120
degree pattern. The 1" balls measure center to center 2.5" apart.

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

PLATE SIZE
2.5" Diameter

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

FEATURES:
2.5" round plate connects to RAM device holders containing the universal AMPS hole pattern

Two B size 1" RAM rubber balls allow for connection to any B size RAM double socket arm; ball and
socket technology allows for near-infinite adjustability

Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding
environments

Backed by a lifetime warranty


WEIGHT
0.38 lbs.
