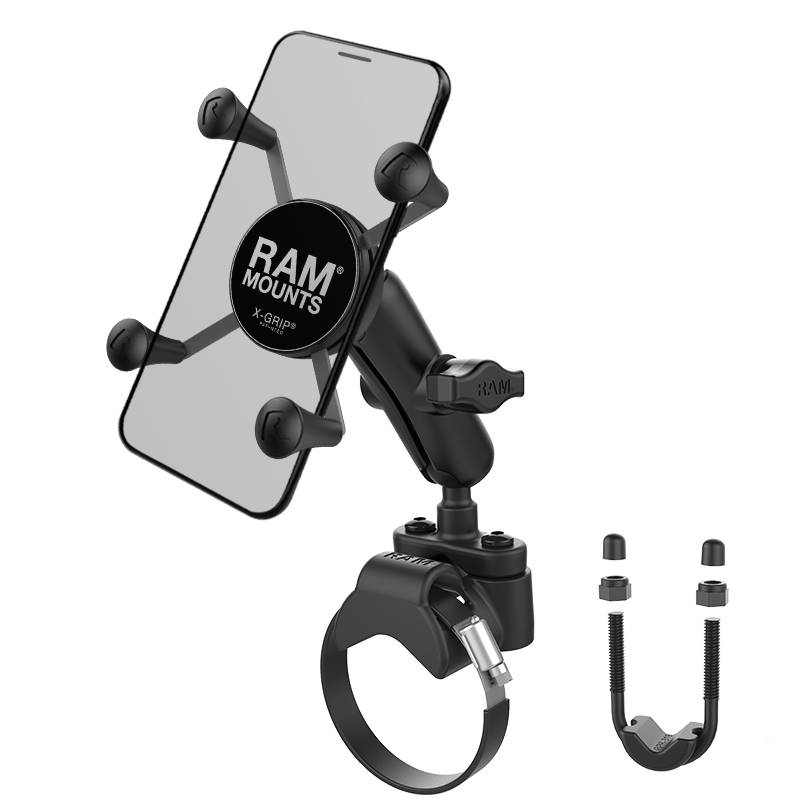

The RAM-B-231-2-UN7U consists of a steel strap base, stainless steel u-bolt base, double socket arm
and universal spring loaded X-Grip cradle for cell phones. Designed for a clean installation, the
RAM strap mount will accommodate most common roll bar sizes on UTV’s, allowing for the placement of
the RAM rubber ball base. This mount can also be attached to smaller diameter handlebars on ATVs
using the included hardware. The included X-Grip cradle has a clean and clever four leg design that
sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded
X-Grip cradle expands and contracts, allowing for a perfect custom fit of your cell phone. The
perfect complement to the modern sleek interior of today's vehicles, the RAM X-Grip is the cell
phone cradle evolved. The X-Grip includes a device tether recommended for outdoor applications. The
cradle is compatible with handheld devices that will fit the dimensions listed below. It is
important to verify the dimensions of your handheld device with a case/sleeve/skin when determining
the overall size.
HARDWARE INCLUDED
(1) Optional Tether
(1) Glue Tube for Rubber Caps
(1) Strap Clamp Adapter
(2) 1/4"-20 x 1" Machine Screws
(2) 1/4"-20 Nylock Nuts
(1) Zinc Worm Drive Strap Clamp
(1) 6" Rubber Strip
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(2) Rubber Caps
(1) U-Bolt Spacer
HOLDER DIMENSIONS
Width Range: 1.875" - 3.25"
Depth Range: .875" max
CLAMP RANGE
U-Bolt: .75" - 1" diameter
Strap Clamp: 1.57" - 3.15" diameter
SOCKET-TO-SOCKET LENGTH
3"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
High strength composite
Stainless steel
PACKAGING TYPE
Poly Bag
ADDITIONAL INFORMATION
and universal spring loaded X-Grip cradle for cell phones. Designed for a clean installation, the
RAM strap mount will accommodate most common roll bar sizes on UTV’s, allowing for the placement of
the RAM rubber ball base. This mount can also be attached to smaller diameter handlebars on ATVs
using the included hardware. The included X-Grip cradle has a clean and clever four leg design that
sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded
X-Grip cradle expands and contracts, allowing for a perfect custom fit of your cell phone. The
perfect complement to the modern sleek interior of today's vehicles, the RAM X-Grip is the cell
phone cradle evolved. The X-Grip includes a device tether recommended for outdoor applications. The
cradle is compatible with handheld devices that will fit the dimensions listed below. It is
important to verify the dimensions of your handheld device with a case/sleeve/skin when determining
the overall size.
HARDWARE INCLUDED
(1) Optional Tether
(1) Glue Tube for Rubber Caps
(1) Strap Clamp Adapter
(2) 1/4"-20 x 1" Machine Screws
(2) 1/4"-20 Nylock Nuts
(1) Zinc Worm Drive Strap Clamp
(1) 6" Rubber Strip
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(2) Rubber Caps
(1) U-Bolt Spacer
HOLDER DIMENSIONS
Width Range: 1.875" - 3.25"
Depth Range: .875" max
CLAMP RANGE
U-Bolt: .75" - 1" diameter
Strap Clamp: 1.57" - 3.15" diameter
SOCKET-TO-SOCKET LENGTH
3"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
High strength composite
Stainless steel
PACKAGING TYPE
Poly Bag
ADDITIONAL INFORMATION
Purchase Includes:
- (QTY. 1) Optional Tether Included
Rail Accommodation Dimensions:
- Mount with Strap: 1.57" to a maximum of 3.15"
- Mount with U-Bolt: 0.50" to a maximum of 1.25"
Cradle Dimensions:
- Minimum Width = 1.875" (Minimum Height = 4.25")
- Maximum Width = 3.25" (Minimum Height = 2.25")
- Depth = 0.875"
- Material:Marine Grade Stainless Steel Components &
High Strength Composite - Ball Size:B Size 1" Rubber Ball
- Note:Part number reflects product packaged in a retail box for store shelf display. RAM highly recommends using the provided Tether for all open cockpit applications while using this product.
