RAM-B-231Z-2U_RAM ATV/UTV Ball Base for Rails up to 3.1

Designed for a clean installation, the RAM-B-231Z-2U base accommodates most common rail and bar
sizes on UTVs and ATVs. With the strap clamp safely concealed in a compact housing, you won’t have
to worry about exposed sharp edges or unwanted loosening. Included in the kit is a zinc-coated metal
U-bolt, allowing you to modify the mount for another mounting location. The base also includes black
cover caps to be placed over the exposed ends of the U-bolt.

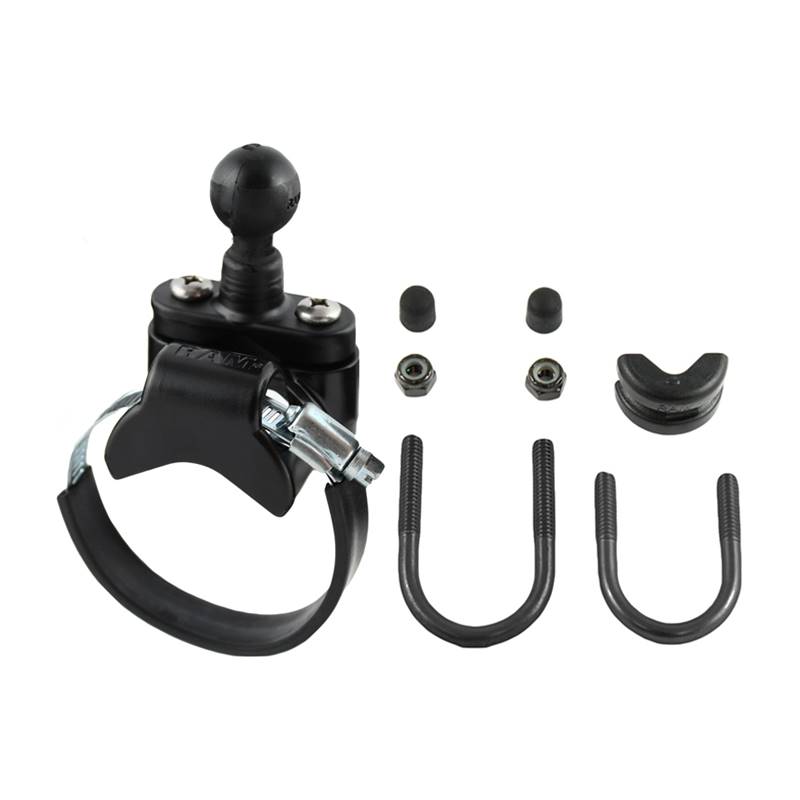

HARDWARE INCLUDED
(1) Strap Clamp Adapter
(2) 1/4"-20 x 1" Machine Screws
(2) 1/4"-20 Nylock Nuts
(1) Zinc Worm Drive Strap Clamp
(1) 6" Rubber Strip
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) Rubber Caps
(1) U-Bolt Spacer

CLAMP RANGE
U-Bolt: .5" - 1.25" diameter
Strap Clamp: 1.57" - 3.15" diameter

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

FEATURES:
Rail and bar base for UTVs and ATVs includes strap clamp and U-bolt components

Included B size 1" RAM rubber ball allows for connection to any B size RAM double socket arm; ball
and socket technology allows for near-infinite adjustability

Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding
environments

Backed by a lifetime warranty


WEIGHT
0.45 lbs.
