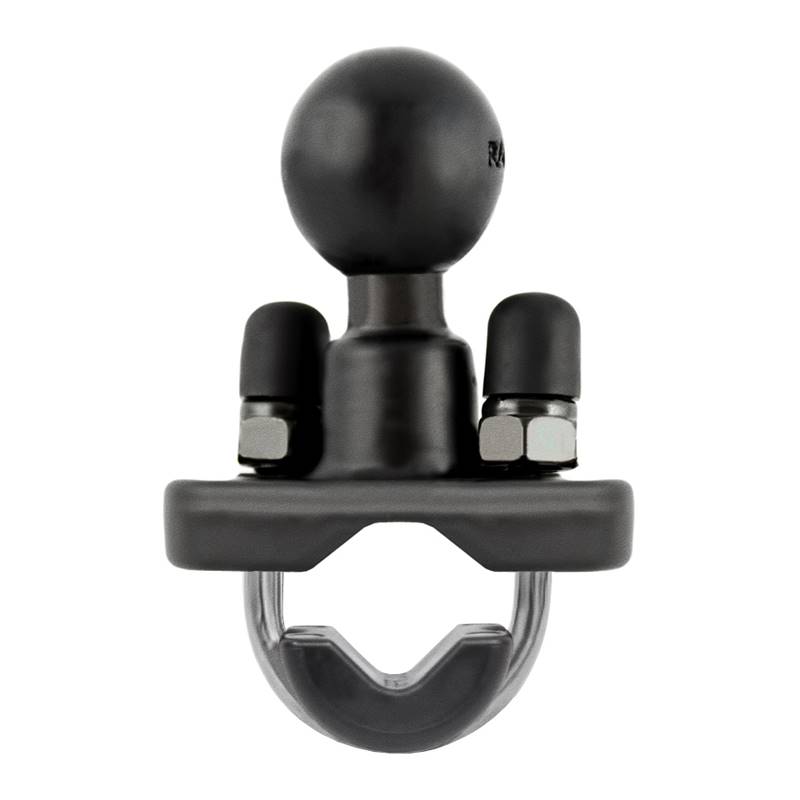

RAM-B-231ZU_RAM Handlebar U-Bolt Base for Rails 0.5" to

Ideal for motorcycle handlebars, the RAM-B-231ZU consists of a 1" B size rubber ball attached to a
zinc-coated metal U-bolt base. Designed to sit at right angles to the mounting rail, the U-bolt base
accommodates rails from .5" to 1.25" in diameter. Included are black cover caps to be placed over
the exposed ends of the U-bolt as well as a composite adapter that can narrow the rail to a minimum
width of .5".

HARDWARE INCLUDED
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

CLAMP RANGE
.5" - 1.25" diameter

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

FEATURES:
Zinc-coated metal U-bolt base with 1" rubber ball is designed to sit at right angles to mounting
rail; includes black cover caps for exposed ends of the U-bolt

Compatible with any B size RAM Mounts component; ball and socket technology allows for near-
infinite adjustability

Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding
environments

Backed by a lifetime warranty


WEIGHT
0.28 lbs.
