RAM-B-238-WCT RAM Universal Wheelchair Ball Base - B Si
RAM-B-238-WCT RAM Universal Wheelchair Ball Base - B Si
Regular price
$22.49 USD
Regular price
Sale price
$22.49 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
B Size 1"
UPC:
793442008078
Mfg Part #:
RAM-B-238-WCT
Availability:
Out Of Stock
Part Number:
RAM-B-238-WCT
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components

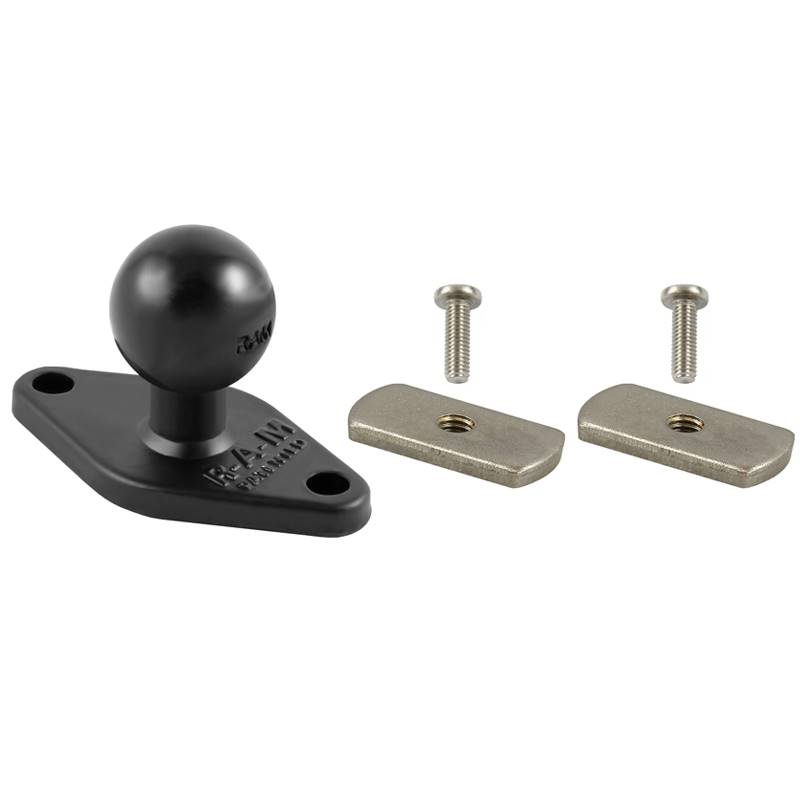

This B size RAM diamond ball base features a universal hardware pack that accommodates the armrest
and seat tracks on most major wheelchair brands, including Invacare, Permobil, and Quickie. Pair
with a variety of compatible RAM double socket arms and device holders to build a custom mount to
meet your specific needs.
HARDWARE INCLUDED
(2) #10-32 T-Nuts
(2) #10-32 Flat Weld Nuts
(2) #10-32 x 1/2" Machine Screws
(2) M4 x 12mm Machine Screws
(2)M4 x 20mm Machine Screws
(2) M4 Stainless Steel Washers
(2) M4 Nylock Nuts
T-BOLT DIMENSIONS
Large: .48" x .95"
Small: .375" x .593"
HOLE PATTERN
2-Hole AMPS: 1.912"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Retail Bag
WEIGHT
0.22 lbs.
and seat tracks on most major wheelchair brands, including Invacare, Permobil, and Quickie. Pair
with a variety of compatible RAM double socket arms and device holders to build a custom mount to
meet your specific needs.
HARDWARE INCLUDED
(2) #10-32 T-Nuts
(2) #10-32 Flat Weld Nuts
(2) #10-32 x 1/2" Machine Screws
(2) M4 x 12mm Machine Screws
(2)M4 x 20mm Machine Screws
(2) M4 Stainless Steel Washers
(2) M4 Nylock Nuts
T-BOLT DIMENSIONS
Large: .48" x .95"
Small: .375" x .593"
HOLE PATTERN
2-Hole AMPS: 1.912"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Retail Bag
WEIGHT
0.22 lbs.
Purchase Includes:
- (QTY. 2) #10-32 x 1/2" Machine Screw
- (QTY. 2) #10-32 T-Nut (3/8" x 5/8")
- (QTY. 2) #10-32 T-Nut (1/2" x 1")
- (QTY. 2) M4 x 12mm Machine Screw
- (QTY. 2) M4 x 20mm Machine Screw
- (QTY. 2) M4 Stainless Steel Washer
- (QTY. 2) M4 Nylock Nut
- Material:Powder Coated Marine Grade Aluminum
- Ball Size:B Size 1" Rubber Ball
- Weight:0.22 lbs.
RAM-B-238U
