RAM Diamond Ball Base with Mounting Har
RAM Diamond Ball Base with Mounting Har
Regular price
$13.99 USD
Regular price
Sale price
$13.99 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
B Size 1"
UPC:
793442928734
Mfg Part #:
RAM-B-238U-INT1
Availability:
Out Of Stock
Part Number:
RAM-B-238U-INT1
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components

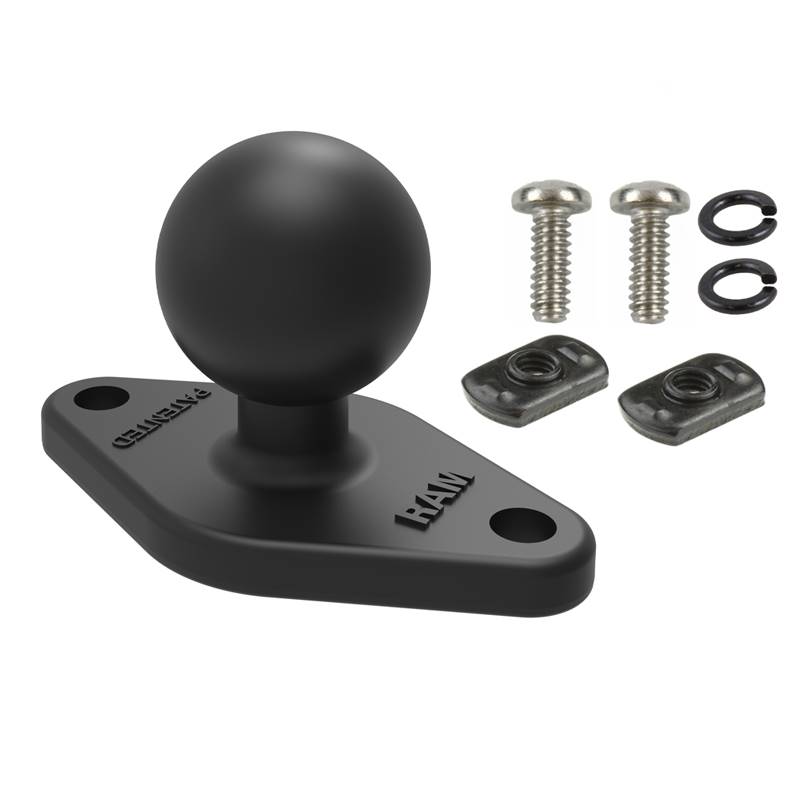

The RAM-B-238U-INT1 consists of a 1" diameter rubber ball connected at right angles to a 2.43" x
1.31" diamond base. The base has two holes 1.912" from center to center, matches the industry
standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party cradles.
HARDWARE INCLUDED
(2) #10-32 x 7/16" Machine Screws
(2) #10 Stainless Steel Lock Washers
(2) #10-32 Flat Weld Nuts
HOLE PATTERN
2-Hole AMPS: 1.912"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
0.1 lbs.
1.31" diamond base. The base has two holes 1.912" from center to center, matches the industry
standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party cradles.
HARDWARE INCLUDED
(2) #10-32 x 7/16" Machine Screws
(2) #10 Stainless Steel Lock Washers
(2) #10-32 Flat Weld Nuts
HOLE PATTERN
2-Hole AMPS: 1.912"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
0.1 lbs.
Purchase Includes:
- (QTY. 2) 10-32 x 7/16" Long PH PD SS Machine Screws
- (QTY. 2) Black Lock Washers
- (QTY. 2) 10-32 Flat Panel Weld Nuts
- Material:Powder Coated Marine Grade Aluminum
- Ball Size:B Size 1" Rubber Ball
- Note:The "U" in the part number reflects product packaged in poly bag.
- Weight:0.1 lbs.
RAM-B-238U
