RAM-B-259U_RAM Glare Shield Clamp Ball Base
RAM-B-259U_RAM Glare Shield Clamp Ball Base
Regular price
$30.49 USD
Regular price
Sale price
$30.49 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
B Size 1"
UPC:
793442102592
Mfg Part #:
RAM-B-259U
Availability:
In Stock
Part Number:
RAM-B-259U
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info

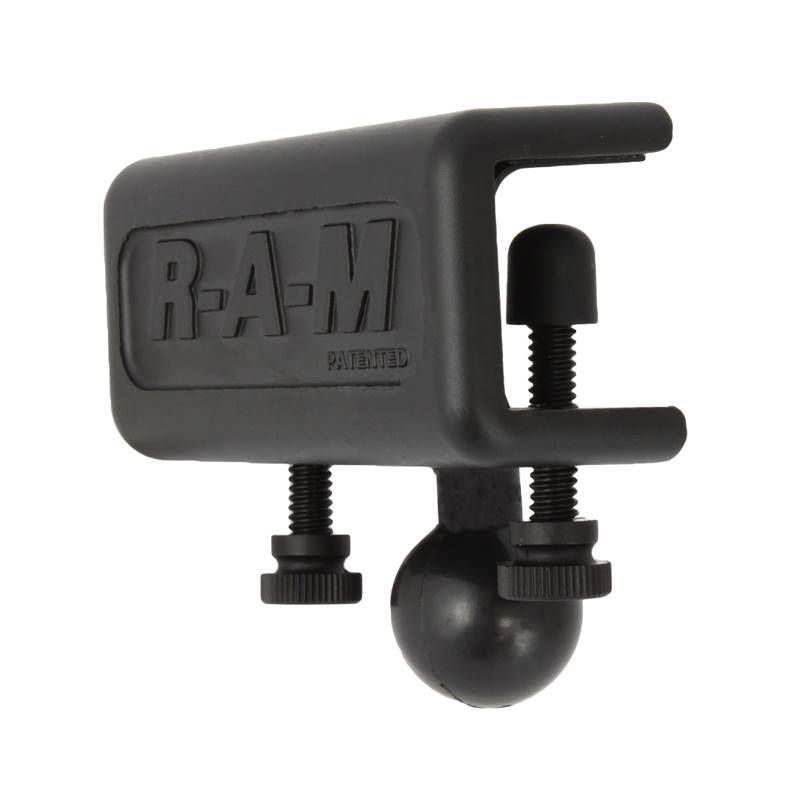

The RAM-B-259U is designed to mount to the lip edge of a flat surface up to 5/8" thick. Popular
mounting edges include a car side window edge lip or glare shield on an airplane. The base has two
composite bolts that, when tightened, clamp the base to the lip surface. A RAM 1" diameter rubber
ball is connected to the base allowing you to connect a RAM 1" diamter arm socket and connection
plates to create the perfect mount for your application.
HARDWARE INCLUDED
(2) 1/4"-20 x 1.25" Composite Thumb Screws
(2) Rubber Caps
(1) 1.93" x 3.06" Rubber Adhesive Pad
CLAMP RANGE
.625" max
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
0.33 lbs.
mounting edges include a car side window edge lip or glare shield on an airplane. The base has two
composite bolts that, when tightened, clamp the base to the lip surface. A RAM 1" diameter rubber
ball is connected to the base allowing you to connect a RAM 1" diamter arm socket and connection
plates to create the perfect mount for your application.
HARDWARE INCLUDED
(2) 1/4"-20 x 1.25" Composite Thumb Screws
(2) Rubber Caps
(1) 1.93" x 3.06" Rubber Adhesive Pad
CLAMP RANGE
.625" max
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
0.33 lbs.
Mount will attach to flat surfaces with the following dimensions:
- Min: 4.4mm / 0.17"
- Max: 28.0mm / 1.12"
- Material:Powder Coated Marine Grade Aluminum
- Ball Size:B Size 1" Rubber Ball
- Note:The "U" in the part number reflects product packaged in poly bag.
- Weight:0.33 lbs.
