RAM Chrome Motorcycle Brake/Clutch Reser
RAM Chrome Motorcycle Brake/Clutch Reser
Regular price
$44.99 USD
Regular price
Sale price
$44.99 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
B Size 1"
UPC:
793442130939
Mfg Part #:
RAM-B-309-1CHU
Availability:
In Stock
Part Number:
RAM-B-309-1CHU
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info

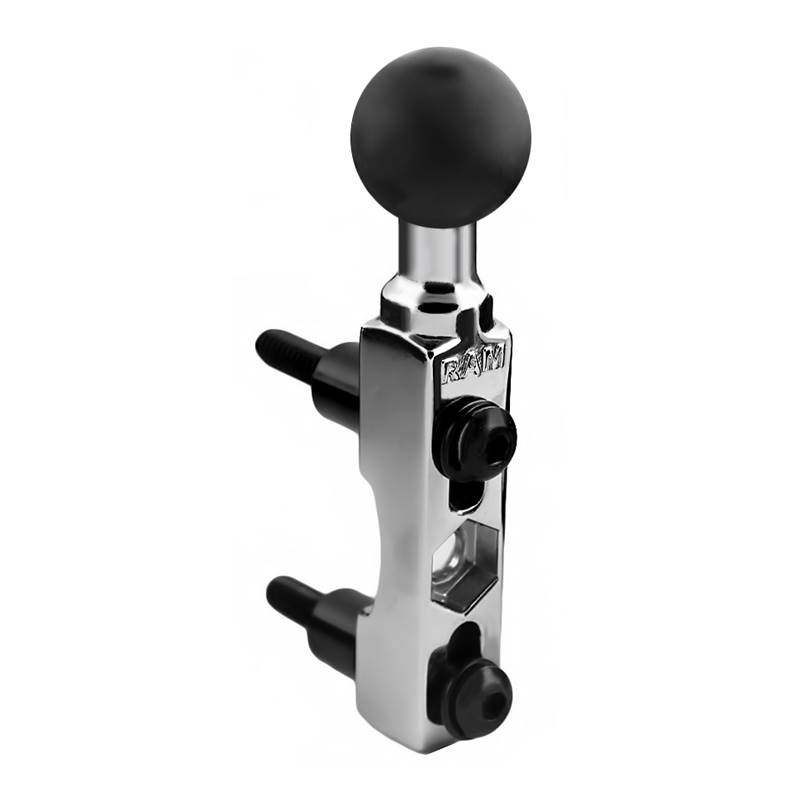

The RAM-B-309-1CHU connects to your handlebar clutch/brake clamp, left or right side, and holds one
1" diameter mounting ball. The chrome base fits the control clamps on your motorcycle with 40mm x
6mm stainless steel hardware, provided in the kit. To see if the RAM-B-309-1CHU base will mount to
your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes
centers have a minimum width of 0.94" and a maximum of 1.58". This base allows for an additional
mount using the RAM Motorcycle 1" Ball Adapter.
HARDWARE INCLUDED
(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
0.23 lbs.
1" diameter mounting ball. The chrome base fits the control clamps on your motorcycle with 40mm x
6mm stainless steel hardware, provided in the kit. To see if the RAM-B-309-1CHU base will mount to
your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes
centers have a minimum width of 0.94" and a maximum of 1.58". This base allows for an additional
mount using the RAM Motorcycle 1" Ball Adapter.
HARDWARE INCLUDED
(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
0.23 lbs.
- Material:Marine Grade Aluminum with Chrome Finish
- Ball Size:B Size 1" Rubber Ball
- Note:The "U" in the part number reflects product packaged in poly bag.
- Weight:0.23 lbs.
