RAM Motorcycle Brake/Clutch Reservoir Ad
RAM Motorcycle Brake/Clutch Reservoir Ad
Regular price
$89.49 USD
Regular price
Sale price
$89.49 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
B Size 1"
UPC:
793442933394
Mfg Part #:
RAM-B-309-7-C2
Availability:
In Stock
Part Number:
RAM-B-309-7-C2
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components

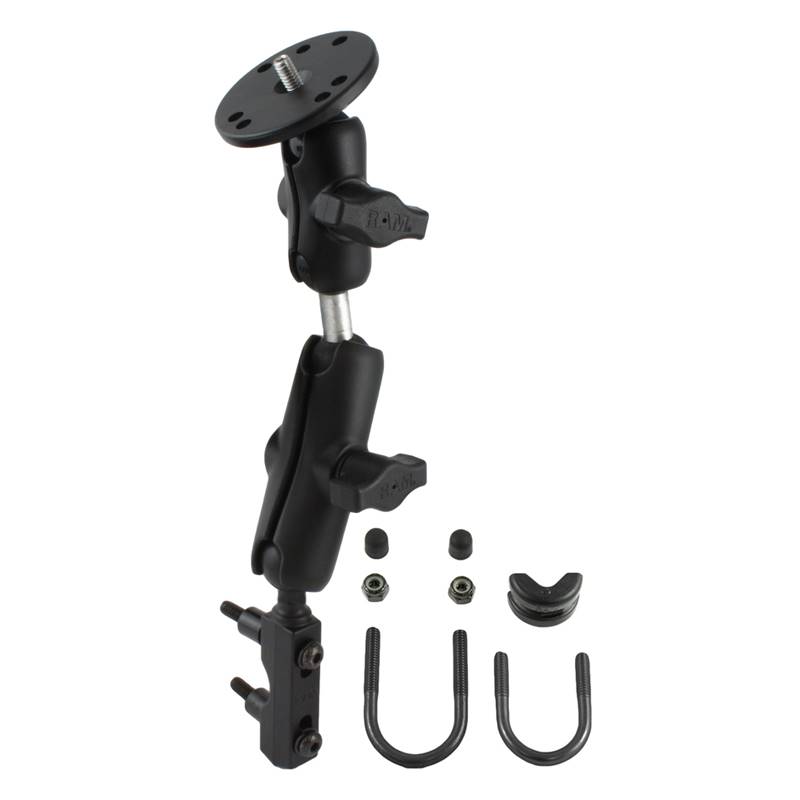

The RAM-B-309-7-C2 consists of a hardware for mounting to both brake/clutch reservoirs and rails
that are 0.5" to 1.25" in diameter, SHORT length double socket arm, STANDARD length double socket
arm, double ball adapter and 2.5" diameter round base adapter that contains a 1/4"-20 male camera
thread. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting
bolts. The included 1/4"-20 threaded steel stud, centered, with round base provides support and
stability for cameras that rest on top of it. The male 1/4"-20 threaded steel stud will connect to
any standard female thread found on camcorders and digital cameras. The mount is designed with a RAM
1" diameter patented rubber ball and socket system that has multiple adjustment points; this
allowing for almost infinite adjustment and perfect viewing angles.
HARDWARE INCLUDED
(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
CLAMP RANGE
.5" - 1.25" diameter
SOCKET-TO-SOCKET LENGTH
Medium Arm: 3"
Short Arm: 1.75"
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Retail Bag
WEIGHT
0.88 lbs.
that are 0.5" to 1.25" in diameter, SHORT length double socket arm, STANDARD length double socket
arm, double ball adapter and 2.5" diameter round base adapter that contains a 1/4"-20 male camera
thread. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting
bolts. The included 1/4"-20 threaded steel stud, centered, with round base provides support and
stability for cameras that rest on top of it. The male 1/4"-20 threaded steel stud will connect to
any standard female thread found on camcorders and digital cameras. The mount is designed with a RAM
1" diameter patented rubber ball and socket system that has multiple adjustment points; this
allowing for almost infinite adjustment and perfect viewing angles.
HARDWARE INCLUDED
(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
CLAMP RANGE
.5" - 1.25" diameter
SOCKET-TO-SOCKET LENGTH
Medium Arm: 3"
Short Arm: 1.75"
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Retail Bag
WEIGHT
0.88 lbs.
- Material:Powder Coated Marine Grade Aluminum
- Ball Size:B Size 1" Rubber Ball
- Note:Part number reflects product packaged in clear clam shell for store shelf display. This product can mount to both the brake/clutch reservoir or any round rail that is 0.5" to 1.25" in diameter. To see if the base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94" and a maximum of 1.58".
- Weight:0.88 lbs.
