RAM-B-309-7U_RAM Motorcycle Brake/Clutch Reservoir & Ha

The RAM-B-309-7U combination handlebar and brake/clutch reservoir base provides the ultimate
flexibility for mounting to your motorcycle. Attach the base to either your handlebar or
brake/clutch, and achieve near-infinite adjustability and ideal viewing angles for your phone, GPS
unit, or action camera. The zinc-coated metal U-bolt accommodates rails ranging from 0.5" to 1.25"
in diameter. Hardware included.

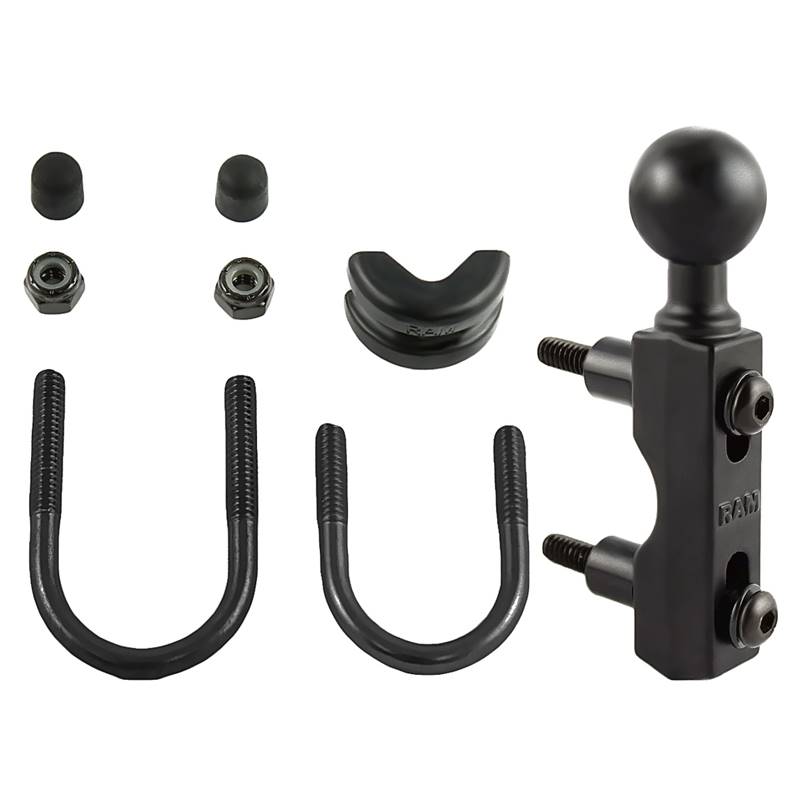

HARDWARE INCLUDED
(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

CLAMP RANGE
.5" - 1.25" diameter

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

FEATURES:
Combination handlebar and brake/clutch reservoir base for motorcycles; includes U-bolt hardware

Included B size 1" RAM rubber ball allows for connection to any B size RAM double socket arm; ball
and socket technology allows for near-infinite adjustability

Made of power-coated, marine-grade aluminum for durability and reliability in the most demanding
marine environments

Backed by a lifetime warranty


WEIGHT
0.45 lbs.
