RAM Pod I Vehicle Mount with 18" Alumi

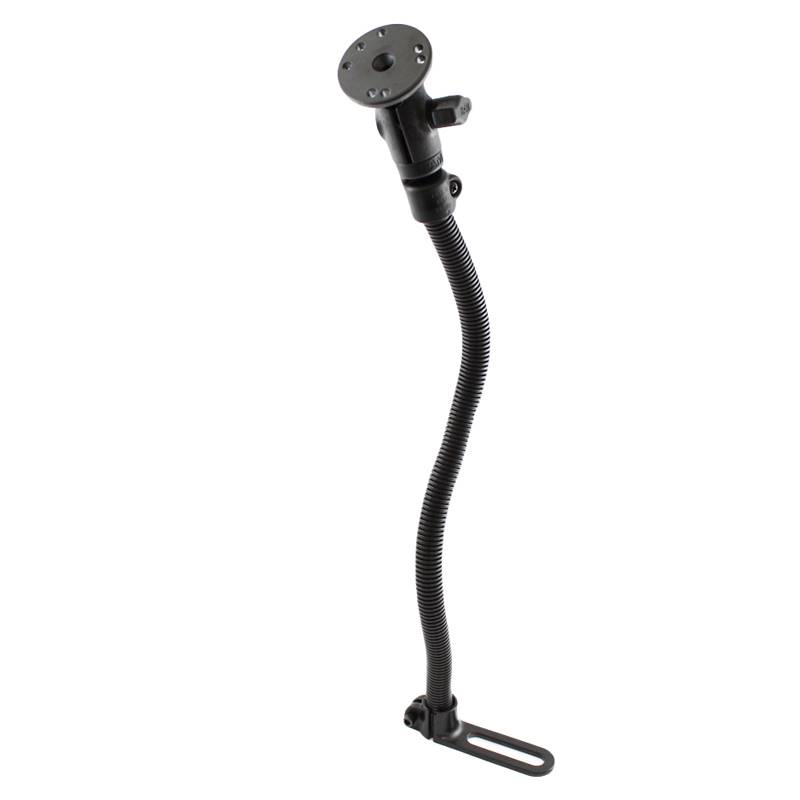

The RAM No-Drill RAM-B-316-1-202U vehicle mount consists of the RAM POD I base, 18” rigid
aluminum rod, B Size 1" ball socket arm, and a round ball plate. The base of the mount connects to
your seat rail without any drilling necessary. The 18" rigid aluminum rod can be bent to position
your device an ideal viewing and operating angle. The 2.5" diameter round base adapter contains the
universal AMPS hole pattern. For proper fit, make sure your vehicle has an appropriate bolt to mount
the base securely. The RAM-B-316-1-202U is not compatible with 2014 and newer Chevrolet seats that
have the seat hook system.

HARDWARE INCLUDED
Assembly Hardware

PRODUCT DIMENSIONS
Overall Height: 21"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

PLATE SIZE
2.5" Diameter

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

FEATURES:
Universal vehicle mount attaches to seat rail without any drilling necessary; 18" aluminum rod can
be bent to your ideal position

Round plate features industry-standard AMPS hole pattern and connects to a variety of RAM device
holders

Made of powder-coated, marine-grade aluminum and high-strength composite for durability and
reliability in the most demanding environments

Backed by a lifetime warranty


WEIGHT
1.35 lbs.
