RAM X-Grip with RAM Pod I Vehicle Moun

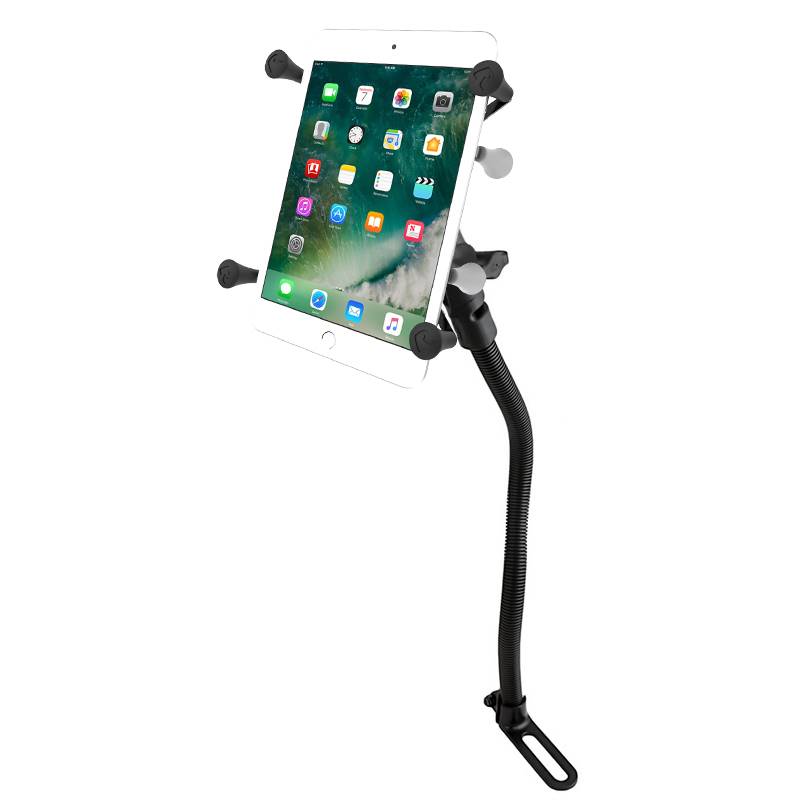

The RAM-B-316-1-UN8B consists of the RAM POD I universal No-Drill vehicle base, 18" rigid aluminum
rod, socket system and universal spring loaded X-Grip cradle for 7"-8" tablets. The base of the
mount connects to your seat rail without any drilling necessary. The 18" rigid aluminum rod can be
bent to position your device to its optimum viewing location. The spring loaded X-Grip cradle
expands and contracts, allowing for a perfect custom fit of your 7"-8" tablet. Included are extra
easy access grip knobs, located on the back of the cradle for quick release of your tablet. The
X-Grip includes a device tether recommended for outdoor applications. The cradle is compatible with
handheld devices that will fit the dimensions listed below. It is important to verify the dimensions
of your handheld device with a case/sleeve/skin when determining the overall size.

HARDWARE INCLUDED
Assembly Hardware
(1) Optional Tether
(1) Glue Tube for Rubber Caps

HOLDER DIMENSIONS
Width Range: 2.5" - 5.75"
Depth Range: .875" max

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Box

FEATURES:
Universal vehicle mount attaches to seat rail without any drilling necessary; 18" aluminum rod can
be bent to your ideal position

Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet;
fits most 7"-8" tablets and includes optional device tether for peace of mind during rugged use

Made of powder-coated, marine-grade aluminum and high-strength composite for durability and
reliability in the most demanding environments

Backed by a lifetime warranty


WEIGHT
3.08 lbs.
