RAM Clevis Components for Transducer

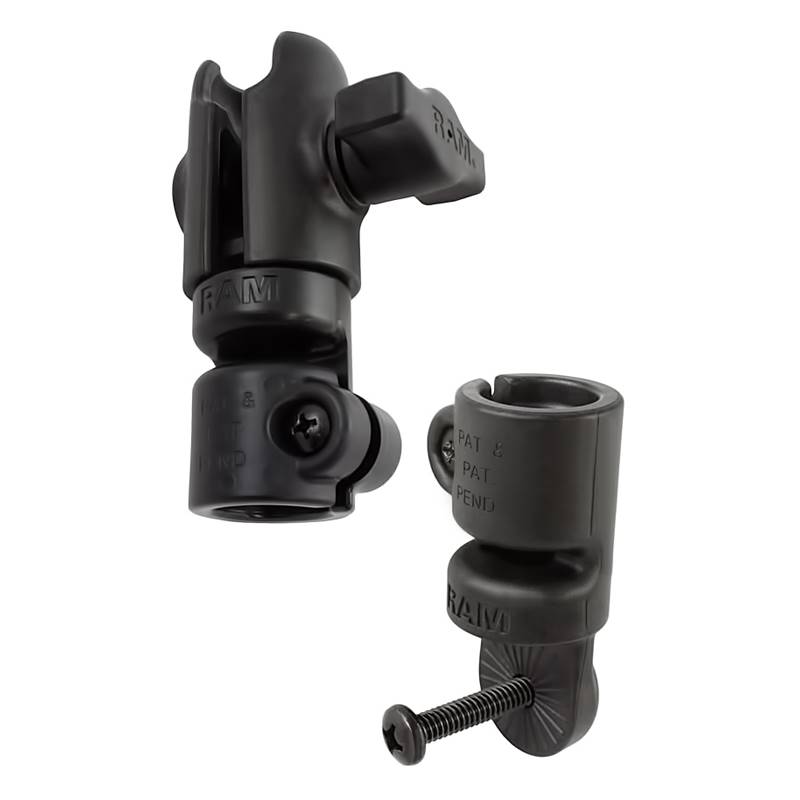

RAM-B-316-TRA1-NRU is the transducer kit used with the RAM TRA1 series of transducer mounts. It
includes the RAP-202-TRA1U transducer base with .5 inch female flex rod. It also includes the
RAP-321U RAM male octagon button with .5 inch pipe clevis and RAP-B-200-1U single socket arm for 1
Inch ball with octagon female opening. The RAP-321U and RAP-B-200-1U are normally used to attach to
a .5 inch diameter RAM aluminum rod on one end and RAM 1 inch diameter ball accessory on the other
end. The RAM transducer arm mount is compatible with most transducers which attach using a 1/4"
bolt/screw.

HARDWARE INCLUDED
Assembly Hardware
(1) 1/4"-20 x 1.5" Machine Screw
(1) 1/4"-20 Nylock Nut

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

WEIGHT
0.35 lbs.
