RAM-B-346U_RAM Offset Reservoir Cover Ball Base

The RAM-B-346U base fits cleanly over your existing brake/clutch reservoir cover with the B size 1"
rubber ball offset. Made of die cast aluminum with an overmolded rubber ball, both form and function
are unsurpassed. Installation is simple and all necessary hardware is included. The mount is NOT an
additional reservoir cover, but instead a plate that mounts above the cover using the screw holes
and longer screws of the cover. The kit includes three sets of screws of differing lengths. The
center two slots are 2 7/16" center to center and are just under a .5" long. This mount is not
compatible with the 2016 BMW R1200RT.

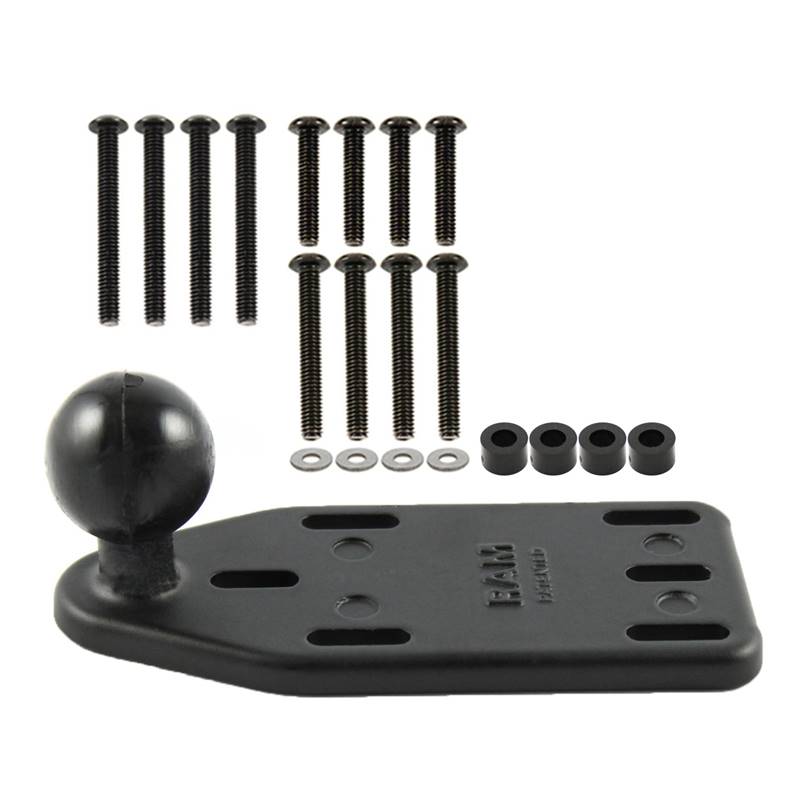

HARDWARE INCLUDED
(4) M4 x 20mm Machine Screws
(4) M4 x 30mm Machine Screws
(4) M4 x 35mm Machine Screws
(4) M4 Flat Washers
(4) .188" Nylon Spacers

HOLE PATTERN
See Drawing

PLATE SIZE
See Drawing

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

FEATURES:
Fits over your motorcycle's existing brake/clutch reservoir cover; includes set of M4 x 35, M4 x 30,
and M4 x 20 screws

Included B size 1" RAM rubber ball allows for connection to any B size RAM double socket arm; ball
and socket technology allows for near-infinite adjustability

Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding
environments

Backed by a lifetime warranty


WEIGHT
0.253 lbs.
