RAM Double Socket Arm with 1/4"-20 Actio

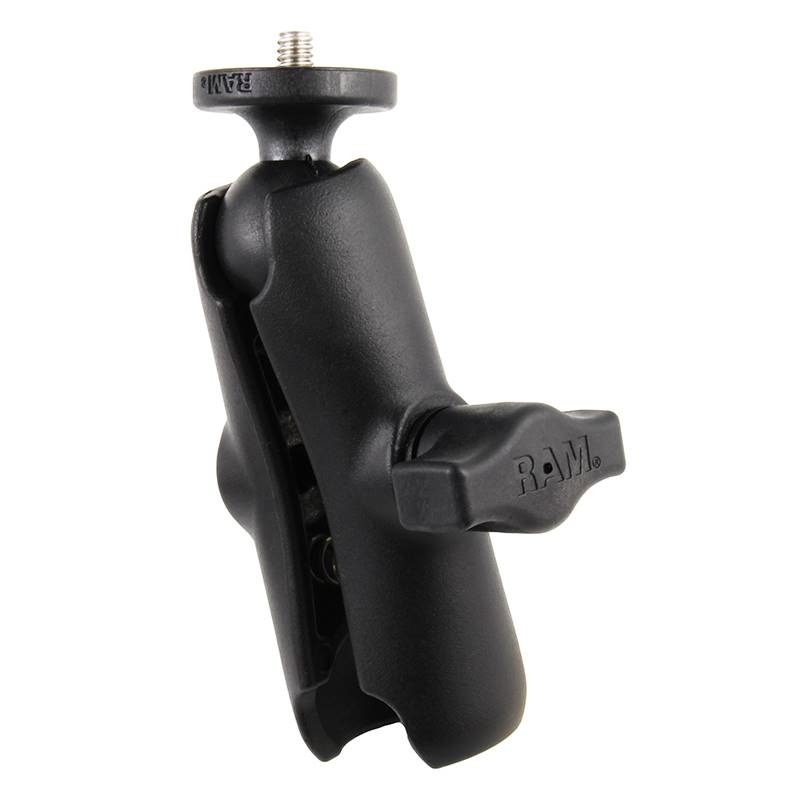

The RAM-B-366-201U consists of a 1" diameter rubber ball, connected to a round plate with 1/4"-20
camera thread and standard length double socket arm. The round base contains pre-drilled holes,
including the universal AMPS hole pattern. The round plate provides extra support and stability for
cameras that rest on top of it. The male 1/4"-20 threaded steel stud will connect to any standard
female thread found on camcorders and digital cameras. Designed into the mount is a 1" diameter
patented rubber ball and socket system with adjustment points at both ends of the socket arm; this
with a twist of the arm knob allows for you to maneuver the mount to your optimum viewing position.

SOCKET-TO-SOCKET LENGTH
3"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

WEIGHT
0.35 lbs.
