RAM X-Grip with Motorcycle Handlebar Cla

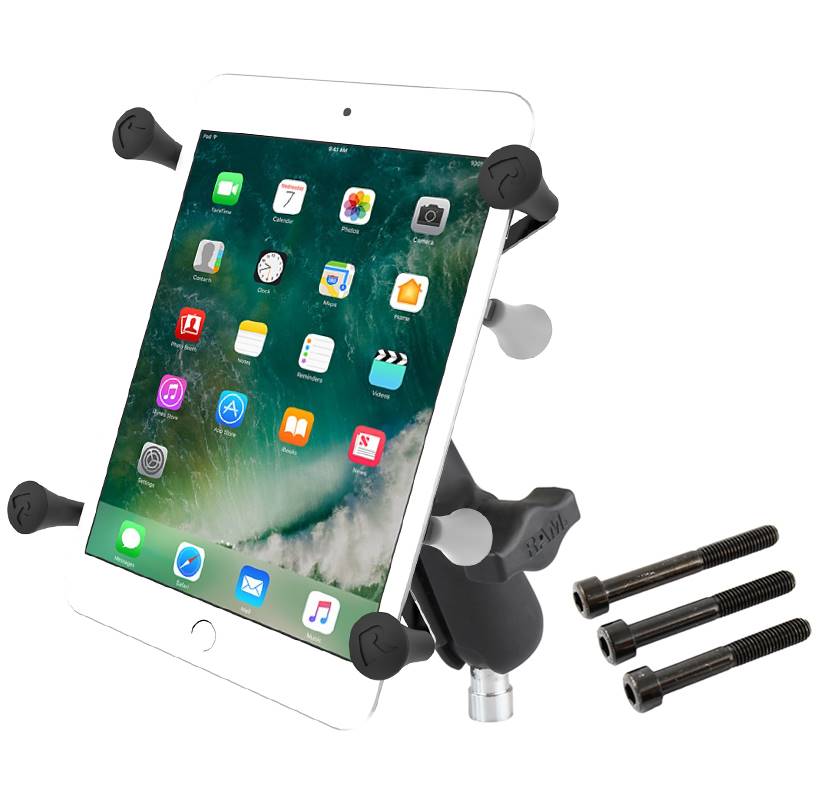

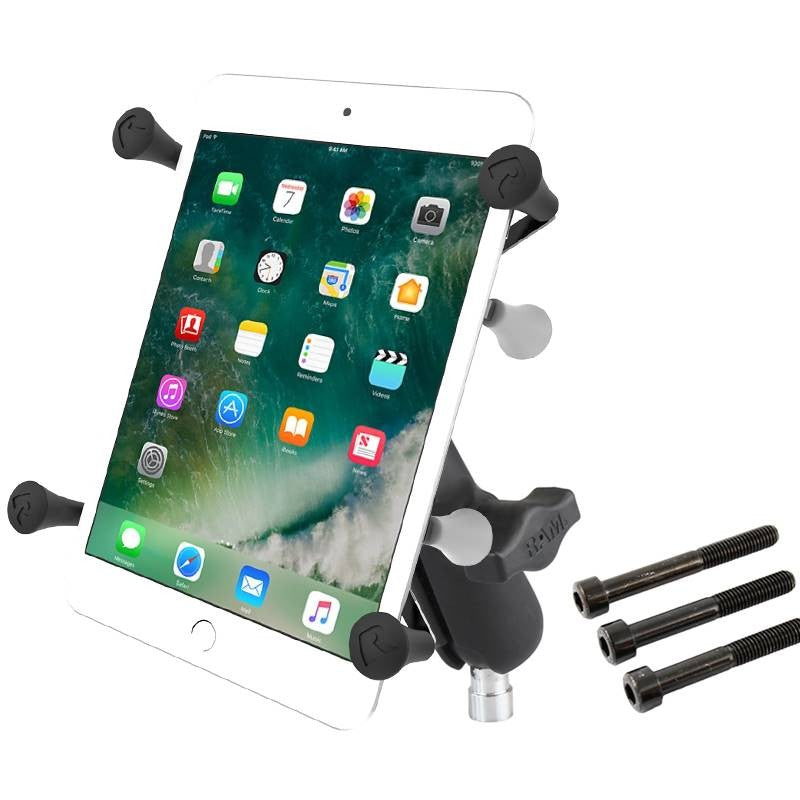

The RAM-B-367-UN7U consists of a motorcycle handlebar clamp base with M8 threads, double socket arm
and universal X-Grip cradle. This mount will replace one of the M8 bolt heads on your handlebar
clamp system, positioning your device clean in the center. The mount is designed with a RAM 1"
diameter patented rubber ball and socket system that has adjustment points at both ends of the
double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The
spring loaded X-Grip cradle expands and contracts, allowing for a perfect custom fit of your 7"-8"
tablet. Included are extra easy access grip knobs, located on the back of the cradle for quick
release of your tablet. The X-Grip includes a device tether recommended for outdoor applications.
The cradle is compatible with handheld devices that will fit the dimensions listed below. It is
important to verify the dimensions of your handheld device with a case/sleeve/skin when determining
the overall size.

HARDWARE INCLUDED
(1) Optional Tether
(1) Glue Tube for Rubber Caps
(1) M8 x 55mm Socket Head Cap Screw
(1) M8 x 60mm Socket Head Cap Screw
(1) M8 x 65mm Socket Head Cap Screw

HOLDER DIMENSIONS
Width Range: 2.5" - 5.75"
Depth Range: .875" max

SOCKET-TO-SOCKET LENGTH
3"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

ADDITIONAL INFORMATION
To determine if these bolts are compatible with your motorcycle measure the bolt for the diameter
and add 30mm to the length. If it matches one of the 55, 60, or 65 mm length, then you can use the
appropriate bolt supplied with the mount. If it does not match, you may be able to source the
correct length of bolt locally or from your BMW dealer. Be sure to use the correct torque spec when
attaching the mount.
