RAM Yoke Clamp Mount with Curved Plat

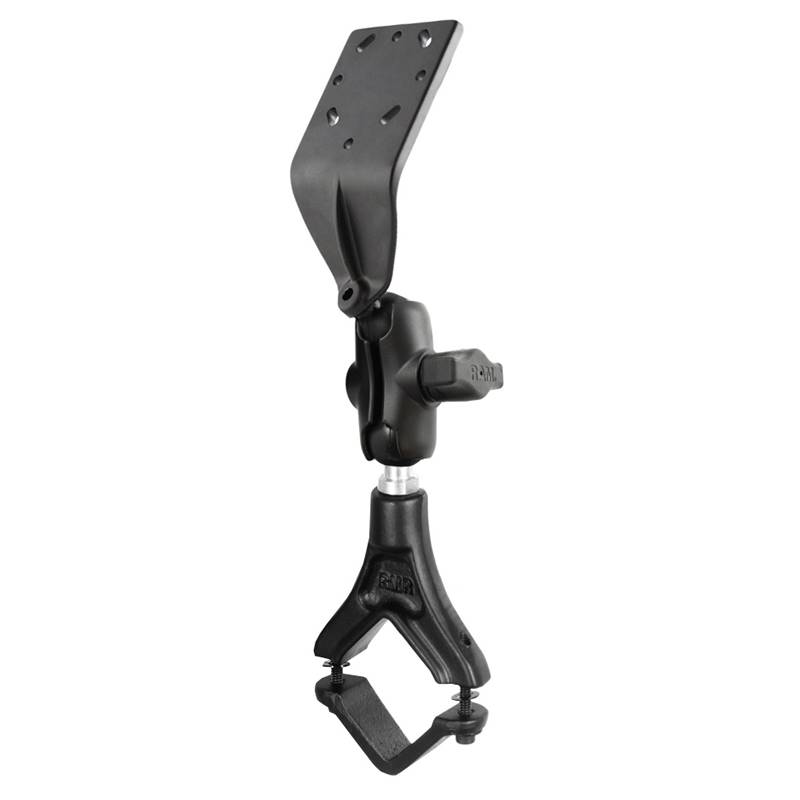

The RAM-B-380-A-125BU consists of a yoke clamp base, SHORT double socket arm and curved angle plate.
The yoke clamp base is designed with the Pilatus PC-12NG in mind; however, if your aircraft yoke has
an outer diameter within the compatible range, this product will fit your yoke. The yoke clamp base
will accommodate an outer diameter range of 1.25" – 1.625". The curved angle plate is 2.5" square
with pre-drilled holes for many different screw hole patterns, including the universal AMPS hole
pattern and all RAM made cradles. The connection section extends approximately 2.25" forward, at a
45 degree angle, from the center of the 1" ball and approximately 1.5" above the 1" ball (to the
bottom of the connection section of the plate).

HARDWARE INCLUDED
(2) #10-24 x 1" Socket Head Cap Screws
(2) #10 Stainless Steel Washers
(2) #10 Screw Retaining Rings
(1) 2" x 7.5" Rubber Adhesive Strip

CLAMP RANGE
1.25" - 1.625"

SOCKET-TO-SOCKET LENGTH
1.75"

HOLE PATTERN
Various AMPS Hole Patterns
See Drawing

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

WEIGHT
0.8 lbs.
