RAM Yoke Clamp Base with Ball for Pilatus PC
RAM Yoke Clamp Base with Ball for Pilatus PC
Regular price
$68.49 USD
Regular price
Sale price
$68.49 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
B Size 1"
UPC:
793442936302
Mfg Part #:
RAM-B-380U
Availability:
Out Of Stock
Part Number:
RAM-B-380U
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components

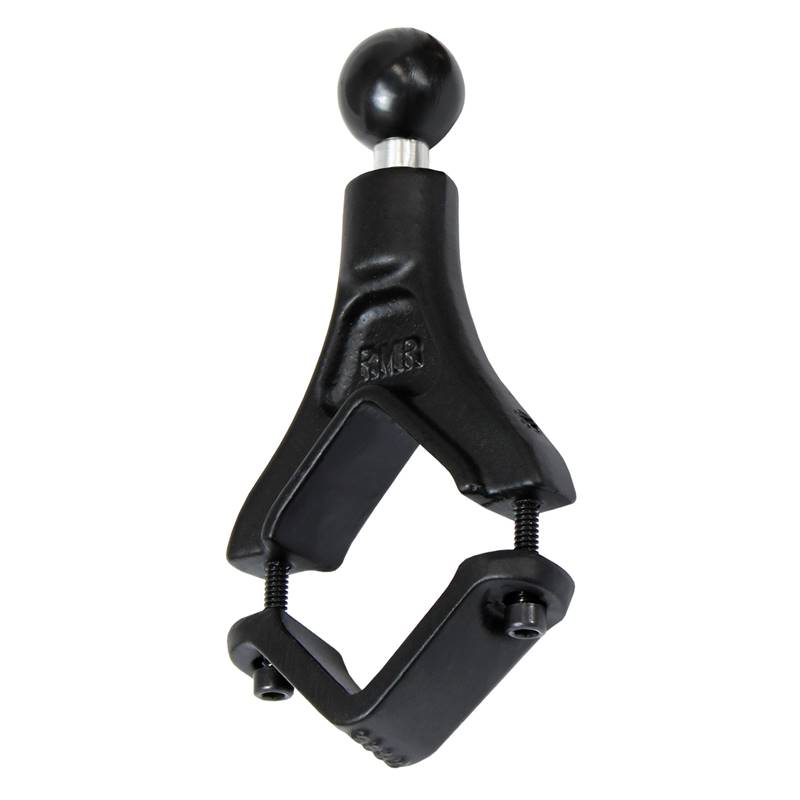

The RAM-B-380U consists of a 1" rubber ball connected to a yoke clamp base. The yoke clamp base is
designed with the Pilatus PC-12NG in mind; however, if your aircraft yoke has an outer diameter
within the compatible range, this product will fit your yoke. The yoke clamp base will accommodate
an outer diameter range of 1.25" – 1.625".
HARDWARE INCLUDED
(2) #10-24 x 1" Socket Head Cap Screws
(2) #10 Stainless Steel Washers
(2) #10 Screw Retaining Rings
(1) 2" x 7.5" Rubber Adhesive Strip
CLAMP RANGE
1.25" - 1.625"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
0.38 lbs.
designed with the Pilatus PC-12NG in mind; however, if your aircraft yoke has an outer diameter
within the compatible range, this product will fit your yoke. The yoke clamp base will accommodate
an outer diameter range of 1.25" – 1.625".
HARDWARE INCLUDED
(2) #10-24 x 1" Socket Head Cap Screws
(2) #10 Stainless Steel Washers
(2) #10 Screw Retaining Rings
(1) 2" x 7.5" Rubber Adhesive Strip
CLAMP RANGE
1.25" - 1.625"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
0.38 lbs.
Yoke Clamp Base Dimension Range:
- Accommodates rails from 1.25" – 1.625" in diameter
- Material:Powder Coated Marine Grade Aluminum
- Ball Size:B Size 1" Rubber Ball
- Note:The "U" in the part number reflects product packaged in poly bag.
- Weight:0.38 lbs.
