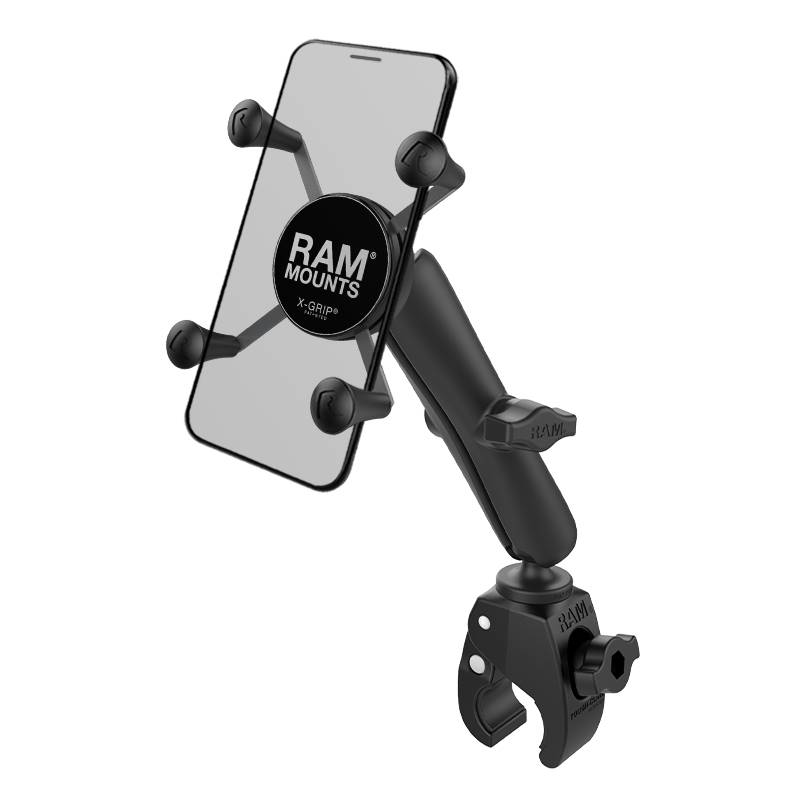

The RAM-B-400-C-UN7U consists of the Tough-Claw rail clamp base, LONG length double socket arm and
universal spring loaded X-Grip cradle for phones. The spring loaded X-Grip cradle expands and
contracts, allowing for a perfect custom fit of your tablet. Included are easy access grip knobs for
quick insertion and release of your handheld device. The Tough-Claw rail clamp base is the perfect
mounting base for quick and easy tool-less installation and removal on round, square, odd shaped
rails and bars. The Tough-Claw can be clamped on rails from 0.625" - 1.5" outer diameter. Perfectly
suited for mounting on the yoke of an aircraft, handlebars and seat posts of bicycles, kayak rails,
roll bars and much more, the RAM Tough-Claw will soon become another essential RAM component in
your collection of mounting options. The X-Grip includes a device tether recommended for outdoor
applications. The cradle is compatible with handheld devices that will fit the dimensions listed
below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when
determining the overall size.
HARDWARE INCLUDED
(1) Optional Tether
(1) Glue Tube for Rubber Caps
HOLDER DIMENSIONS
Width Range: 1.875" - 3.25"
Depth Range: .875" max
CLAMP RANGE
.625" - 1.5" diameter
0" - 1.14" flat surfaces
SOCKET-TO-SOCKET LENGTH
5.31"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
High strength composite
Stainless steel
PACKAGING TYPE
Poly Bag
ADDITIONAL INFORMATION
WEIGHT
1.0 lbs.
universal spring loaded X-Grip cradle for phones. The spring loaded X-Grip cradle expands and
contracts, allowing for a perfect custom fit of your tablet. Included are easy access grip knobs for
quick insertion and release of your handheld device. The Tough-Claw rail clamp base is the perfect
mounting base for quick and easy tool-less installation and removal on round, square, odd shaped
rails and bars. The Tough-Claw can be clamped on rails from 0.625" - 1.5" outer diameter. Perfectly
suited for mounting on the yoke of an aircraft, handlebars and seat posts of bicycles, kayak rails,
roll bars and much more, the RAM Tough-Claw will soon become another essential RAM component in
your collection of mounting options. The X-Grip includes a device tether recommended for outdoor
applications. The cradle is compatible with handheld devices that will fit the dimensions listed
below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when
determining the overall size.
HARDWARE INCLUDED
(1) Optional Tether
(1) Glue Tube for Rubber Caps
HOLDER DIMENSIONS
Width Range: 1.875" - 3.25"
Depth Range: .875" max
CLAMP RANGE
.625" - 1.5" diameter
0" - 1.14" flat surfaces
SOCKET-TO-SOCKET LENGTH
5.31"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
High strength composite
Stainless steel
PACKAGING TYPE
Poly Bag
ADDITIONAL INFORMATION
WEIGHT
1.0 lbs.
Purchase Includes:
- (QTY. 1) Optional Tether Included
Clamping Range:
- For Rail/Tube Surfaces: 0.625" to 1.5"
- For Flat Surfaces: 0" to 1.14"
Cradle Dimensions:
- Minimum Width = 1.875" (Minimum Height = 4.25")
- Maximum Width = 3.25" (Minimum Height = 2.25")
- Depth = 0.875"
- Material:Powder Coated Marine Grade Aluminum, Marine Grade Stainless Steel Components &
High Strength Composite - Ball Size:B Size 1" Rubber Ball
- Note:The "U" in the part number reflects product packaged in poly bag. RAM highly recommends using the provided Tether for all open cockpit applications while using this product.
- Weight:1.0 lbs.
