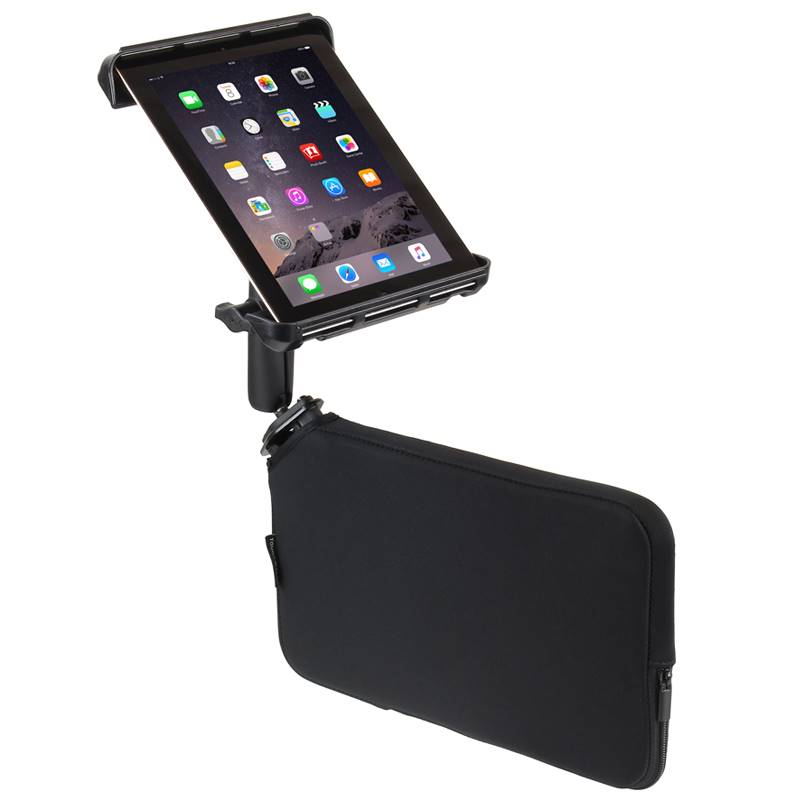

RAM Tab-Tite with RAM Tough-Wedge

The RAM-B-407-201-C-TAB3u consists of the Tough-Wedge and long length double socket arm with a .
The Tough-Wedge is a seat wedge mount that fits in the gap between the vehicle seat and center
console; allowing easy access and operation of your mobile device. The Tough-Wedge can also be used
for back-seat applications, inserted into the pockets located on the back of the front seats. The
mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment
points at both ends of the double socket arm. The long length double socket arm measures 6" and will
connect to all RAM cradles/adapters with a 1" ball. Included is a set of four nuts and bolts to
connect the cradle to any RAM components or mounts that contain the universal AMPs hole pattern. The
Tab-Tite cradle is compatible with any tablet that will fit the dimensions listed below. It is
important to verify the dimensions of your tablet when determining the overall size.

HARDWARE INCLUDED
Assembly Hardware

HOLDER DIMENSIONS
Height Range: 8.5" - 11.125"
Width Range: 6.38" - 7.75"
Depth Range: .13" - .56"

WEDGE DIMENSIONS
Length: 13.25"
Height: 8.25"
Thickness: 1"

SOCKET-TO-SOCKET LENGTH
5.31"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

WEIGHT
2.57 lbs.
