RAM Tough-Wedge Mount with Round

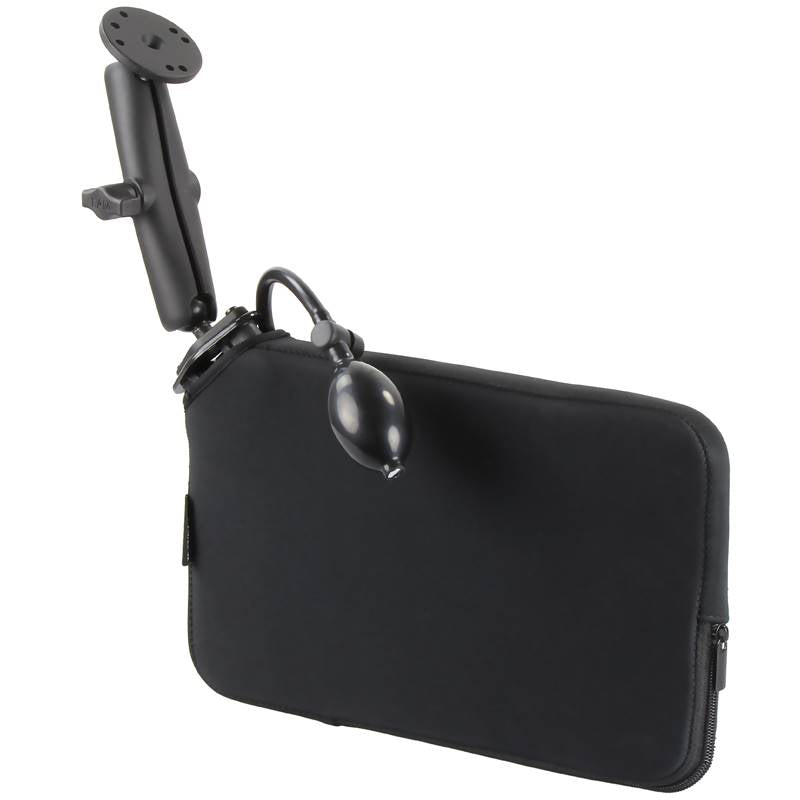

The RAM-B-407-C-202-PUMPU consists of the Tough-Wedge 1" ball diamond base, long double socket arm
and round base. The Tough-Wedge is a mount that fits in the gap between the vehicle seat and center
console or potentially a center seat. This allows for easy access and operation of a mobile device.
The Tough-Wedge can also be used for back-seat applications by inserted into the pockets located on
the back of the front seats. The mount is designed with a RAM 1" diameter patented rubber ball and
socket system that has adjustment points at both ends of the double socket arm. The long length
double socket arm measures 6" and will connect to all RAM cradles/adapters with a 1" ball. The 2.5"
round base contains the universal AMPs hole pattern. Included in this kit is an innovative Expansion
Pouch accessory for the RAM Tough-Wedge. This optional accessory is designed to increase the
stability of your mount by creating a more secure fit of the wedge mount into the gap between seats.
The Expansion Pouch fits inside the Tough-Wedge sleeve and is then inflated with the hand pump to
the desired level, ensuring your device stays firmly in place.

HARDWARE INCLUDED
Assembly Hardware

WEDGE DIMENSIONS
Length: 13.25"
Height: 8.25"
Thickness: 1"

SOCKET-TO-SOCKET LENGTH
5.31"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum
High strength composite

PACKAGING TYPE
Poly Bag

WEIGHT
2.32 lbs.
