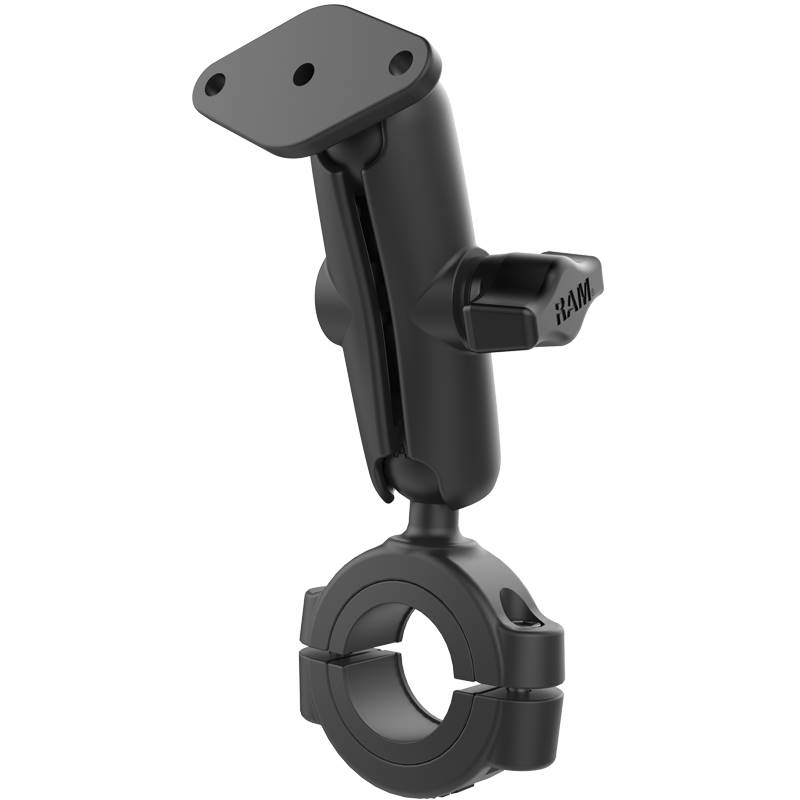

RAM Torque Large Rail Base with D

Take your mobile entertainment on the road with the RAM Torque handlebar and rail mounting base.
We’ve paired a B-sized 1” rubber ball base that accommodates bars 1 1/8" to 1 ½” in diameter with a
standard length double socket arm and B-sized ball and diamond base so that you can connect any of
the RAM Mounts cradles or anything else with the AMPS hole pattern. Sizing inserts are included to
provide a snug fit and offer additional protection for the rail. The mount utilizes nylon-insert
locknuts to prevent loosening in high vibration environments. This low-profile mount is the perfect
way to secure your personal electronics and small accessories in any high-vibration environment.

HARDWARE INCLUDED
(2) #10-24 x 1" Socket Head Cap Screws
(2) #10-24 Nylock Nuts
(2) 1.12" Split Reducing Bushings
(2) 1.27" Split Reducing Bushings
(1) 5/32" Hex Key Wrench
(1) 127mm x 17mm Rubber Adhesive Strip

CLAMP RANGE
1.125" - 1.5" diameter

SOCKET-TO-SOCKET LENGTH
3"

HOLE PATTERN
2-Hole AMPS: 1.912"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

WEIGHT
0.64 lbs.
