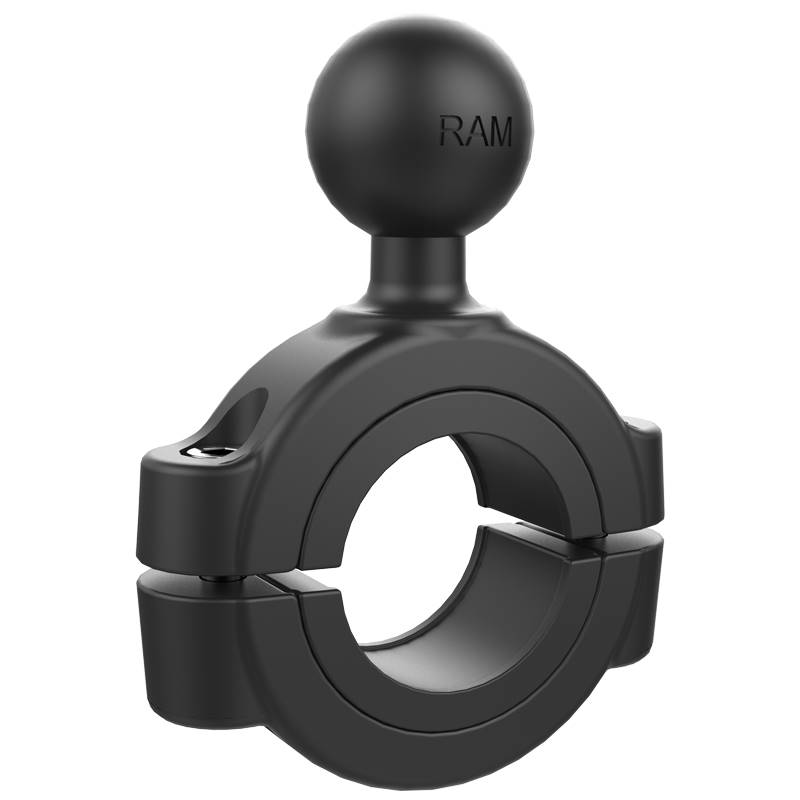

RAM-B-408-112-15U_RAM Torque Large Rail Base - B Size

The large version of the RAM Torque handlebar mounting base features a 1" B size RAM rubber ball
and is compatible with rails 1 1/8” to 1 1/2" in diameter. Sizing inserts are included to provide a
tight fit while also protecting the mounting surface. The large RAM Torque mounting base also
includes nylon-insert locknuts to prevent loosening in high vibration environments.

HARDWARE INCLUDED
(2) #10-24 x 1" Socket Head Cap Screws
(2) #10-24 Nylock Nuts
(2) 1.12" Split Reducing Bushings
(2) 1.27" Split Reducing Bushings
(1) 5/32" Hex Key Wrench
(1) 127mm x 17mm Rubber Adhesive Strip

CLAMP RANGE
1.125" - 1.5" diameter

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

FEATURES:
Handlebar mounting base with B size 1" rubber ball accommodates rails 1 1/8" to 1 1/2" in diameter

Includes sizing inserts to provide a tight fit while protecting the mounting surface; mount includes
nylon-insert locknuts to prevent loosening

Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding
environments

Backed by a lifetime warranty


WEIGHT
0.28 lbs.
