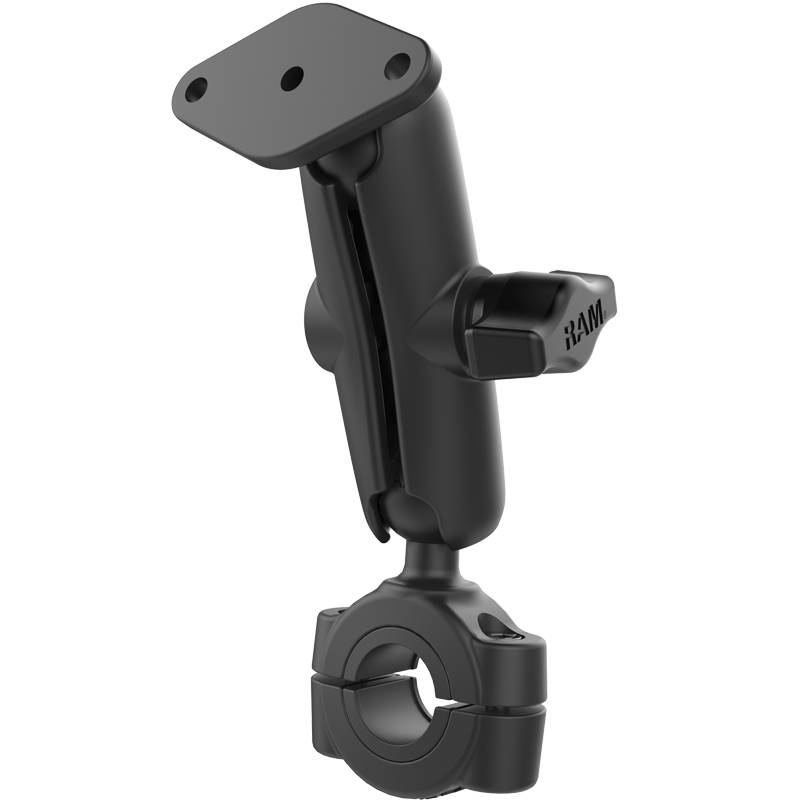

RAM Torque Medium Rail Double Ball

Take your mobile entertainment on the road with the new RAM Torque handlebar and rail mounting
base. We’ve paired a B-sized 1" ball base that accommodate bars 3/4" to 1" in diameter with a
B-sized standard length arm and diamond base so that you can connect any of the RAM Mounts cradles
or anything else with the AMPS hole pattern. Sizing inserts are included to provide a snug fit and
offer additional protection for the rail. The mount utilizes nylon-insert locknuts to prevent
loosening in high vibration environments. This low-profile mount is the perfect way to secure your
personal electronics and small accessories in any high-vibration environment.

HARDWARE INCLUDED
(2) #10-24 x 1" Socket Head Cap Screws
(2) #10-24 Nylock Nuts
(2) .75" Composite Bushings
(2) .9" Composite Bushings
(1) 88.9mm Rubber Strip
(1) 5/32" Hex Key Wrench

CLAMP RANGE
.75" - 1" diameter

SOCKET-TO-SOCKET LENGTH
3"

HOLE PATTERN
2-Hole AMPS: 1.912"

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

WEIGHT
0.67 lbs.
