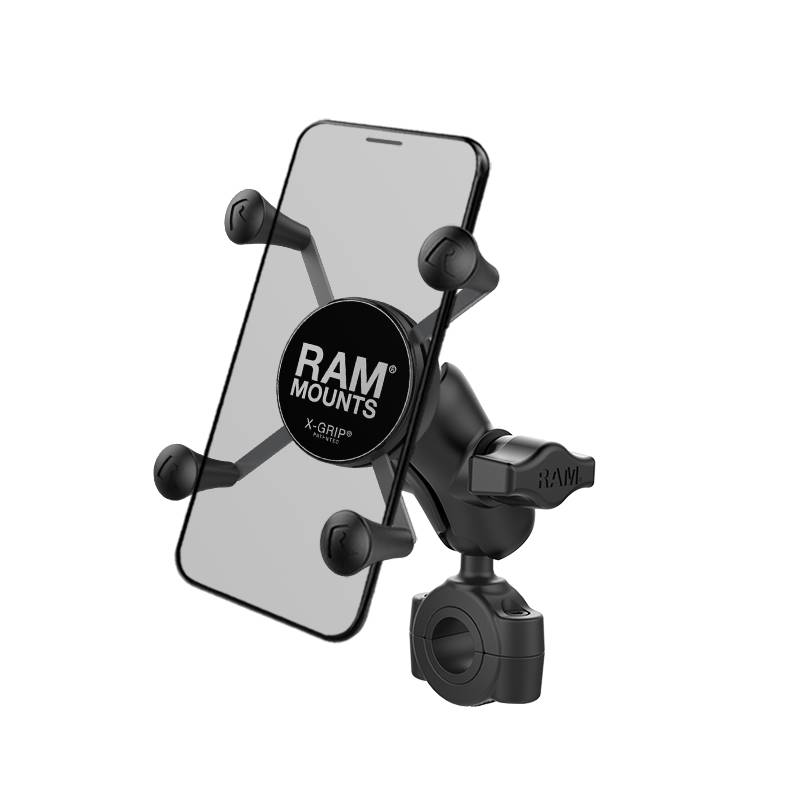

We’ve paired a B-sized 1” rubber ball base that accommodates bars 3/4" - 1" in diameter with the
dynamic X-Grip. Sizing inserts are included to provide a snug fit and offer additional protection
for the rail. The mount utilizes nylon-insert locknuts to prevent loosening in high vibration
environments. This low-profile mount is the perfect way to secure your personal electronics and
small accessories in any high-vibration environment. The included X-Grip cradle has a clean and
clever four leg design that sports great holding power without hiding your phone behind foam pads
and plastic. The spring loaded X-Grip cradle expands and contracts, allowing for a perfect custom
fit of your cell phone. The perfect complement to the modern sleek interior of today's vehicles, the
RAM X-Grip is the cell phone cradle evolved. The X-Grip includes a device tether recommended for
outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions
listed below. It is important to verify the dimensions of your handheld device with a
case/sleeve/skin when determining the overall size.
HARDWARE INCLUDED
(1) Optional Tether
(1) Glue Tube for Rubber Caps
(2) #10-24 x 1" Socket Head Cap Screws
(2) #10-24 Nylock Nuts
(2) .75" Composite Bushings
(2) .9" Composite Bushings
(1) 88.9mm Rubber Strip
(1) 5/32" Hex Key Wrench
HOLDER DIMENSIONS
Width Range: 1.875" - 3.25"
Depth Range: .875" max
CLAMP RANGE
.75" - 1" diameter
SOCKET-TO-SOCKET LENGTH
1.75"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
High strength composite
Stainless steel
PACKAGING TYPE
Poly Bag
ADDITIONAL INFORMATION
WEIGHT
0.79 lbs.
dynamic X-Grip. Sizing inserts are included to provide a snug fit and offer additional protection
for the rail. The mount utilizes nylon-insert locknuts to prevent loosening in high vibration
environments. This low-profile mount is the perfect way to secure your personal electronics and
small accessories in any high-vibration environment. The included X-Grip cradle has a clean and
clever four leg design that sports great holding power without hiding your phone behind foam pads
and plastic. The spring loaded X-Grip cradle expands and contracts, allowing for a perfect custom
fit of your cell phone. The perfect complement to the modern sleek interior of today's vehicles, the
RAM X-Grip is the cell phone cradle evolved. The X-Grip includes a device tether recommended for
outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions
listed below. It is important to verify the dimensions of your handheld device with a
case/sleeve/skin when determining the overall size.
HARDWARE INCLUDED
(1) Optional Tether
(1) Glue Tube for Rubber Caps
(2) #10-24 x 1" Socket Head Cap Screws
(2) #10-24 Nylock Nuts
(2) .75" Composite Bushings
(2) .9" Composite Bushings
(1) 88.9mm Rubber Strip
(1) 5/32" Hex Key Wrench
HOLDER DIMENSIONS
Width Range: 1.875" - 3.25"
Depth Range: .875" max
CLAMP RANGE
.75" - 1" diameter
SOCKET-TO-SOCKET LENGTH
1.75"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
High strength composite
Stainless steel
PACKAGING TYPE
Poly Bag
ADDITIONAL INFORMATION
WEIGHT
0.79 lbs.
Rail Mount Dimensions:
- Accommodates rails 3/4" to 1" in diameter
Purchase Includes:
- (QTY. 1) Optional Tether Included
Cradle Dimensions:
- Minimum Width = 1.875" (Minimum Height = 4.25")
- Maximum Width = 3.25" (Minimum Height = 2.25")
- Depth = 0.875"
- Material:Powder Coated Marine Grade Aluminum, Marine Grade Stainless Steel Components &
High Strength Composite - Ball Size:B Size 1" Rubber Ball
- Note:The "U" in the part number reflects product packaged in poly bag. RAM highly recommends using the provided Tether for all open cockpit applications while using this product.
- Weight:0.79 lbs.
RAM-B-408-75-1U
RAM-B-201U-A
RAM-HOL-UN7BU
