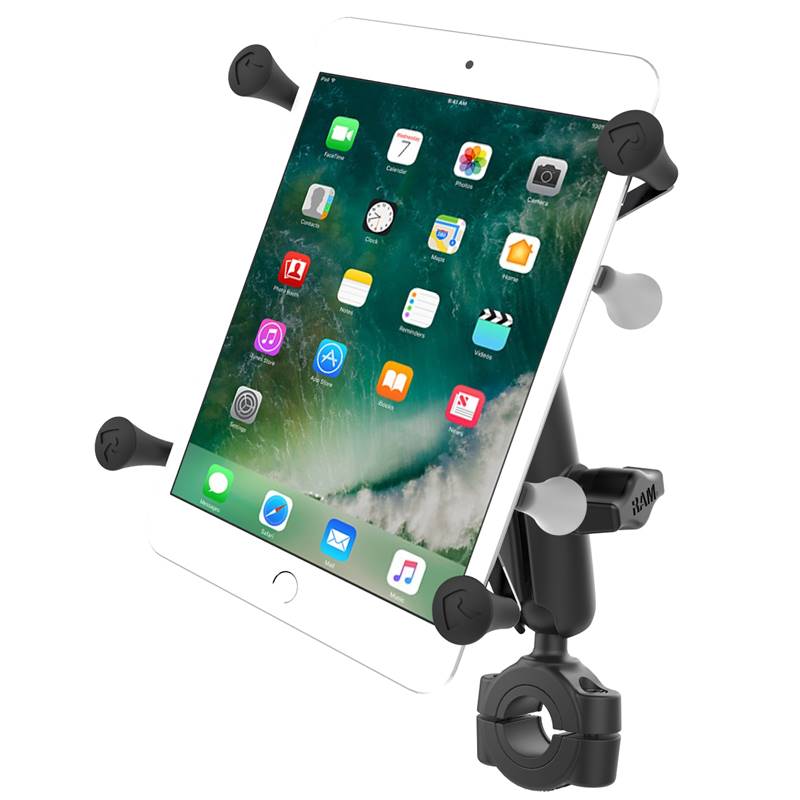

Take your mobile entertainment on the road with the new RAM Torque handlebar and rail mounting
base. We’ve paired a B-sized 1” rubber ball base that accommodates bars 3/4” – 1” in diameter with a
B-sized standard length arm the dynamic X-Grip for 7”-8” tablets. Sizing inserts are included to
provide a snug fit and offer additional protection for the rail. The mount utilizes nylon-insert
locknuts to prevent loosening in high vibration environments. This low-profile mount is the perfect
way to secure your personal electronics and small accessories in any high-vibration environment. The
X-Grip includes a device tether recommended for outdoor applications. The cradle is compatible with
handheld devices that will fit the dimensions listed below. It is important to verify the dimensions
of your handheld device with a case/sleeve/skin when determining the overall size.
HARDWARE INCLUDED
(1) Optional Tether
(1) Glue Tube for Rubber Caps
(2) #10-24 x 1" Socket Head Cap Screws
(2) #10-24 Nylock Nuts
(2) .75" Composite Bushings
(2) .9" Composite Bushings
(1) 88.9mm Rubber Strip
(1) 5/32" Hex Key Wrench
HOLDER DIMENSIONS
Width Range: 2.5" - 5.75"
Depth Range: .875" max
CLAMP RANGE
.75" - 1" diameter
SOCKET-TO-SOCKET LENGTH
3"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
High strength composite
PACKAGING TYPE
Poly Bag
ADDITIONAL INFORMATION
WEIGHT
0.89 lbs.
base. We’ve paired a B-sized 1” rubber ball base that accommodates bars 3/4” – 1” in diameter with a
B-sized standard length arm the dynamic X-Grip for 7”-8” tablets. Sizing inserts are included to
provide a snug fit and offer additional protection for the rail. The mount utilizes nylon-insert
locknuts to prevent loosening in high vibration environments. This low-profile mount is the perfect
way to secure your personal electronics and small accessories in any high-vibration environment. The
X-Grip includes a device tether recommended for outdoor applications. The cradle is compatible with
handheld devices that will fit the dimensions listed below. It is important to verify the dimensions
of your handheld device with a case/sleeve/skin when determining the overall size.
HARDWARE INCLUDED
(1) Optional Tether
(1) Glue Tube for Rubber Caps
(2) #10-24 x 1" Socket Head Cap Screws
(2) #10-24 Nylock Nuts
(2) .75" Composite Bushings
(2) .9" Composite Bushings
(1) 88.9mm Rubber Strip
(1) 5/32" Hex Key Wrench
HOLDER DIMENSIONS
Width Range: 2.5" - 5.75"
Depth Range: .875" max
CLAMP RANGE
.75" - 1" diameter
SOCKET-TO-SOCKET LENGTH
3"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
High strength composite
PACKAGING TYPE
Poly Bag
ADDITIONAL INFORMATION
WEIGHT
0.89 lbs.
Rail Mount Dimensions:
- Accommodates rails 3/4" to 1" in diameter
Purchase Includes:
- (QTY. 1) Optional Tether Included
Cradle Dimensions:
- Minimum Width = 2.5" (Minimum Height = 7")
- Maximum Width = 5.75" (Minimum Height = 4")
- Depth = 0.875"
- Material:Powder Coated Marine Grade Aluminum, Marine Grade Stainless Steel Components &
High Strength Composite - Ball Size:B Size 1" Rubber Ball
- Note:The "U" in the part number reflects product packaged in poly bag. RAM highly recommends using the provided Tether for all open cockpit applications while using this product.
- Weight:0.89 lbs.
RAM-B-201U
RAM-B-408-75-1U
RAM-HOL-UN8BU
