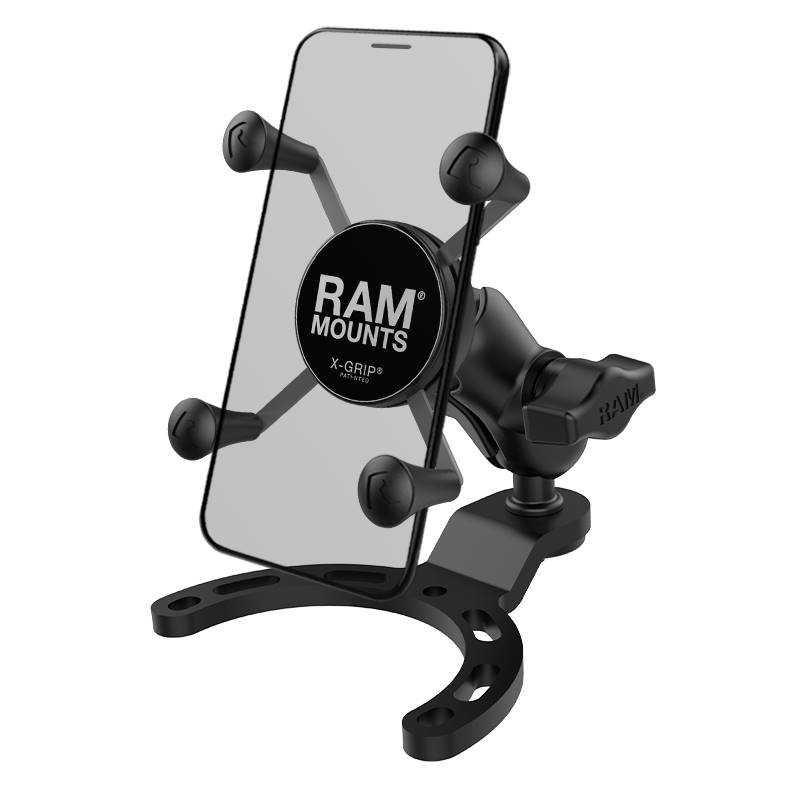

The RAM Gas Tank base is a low-profile way to get a unique perspective from your camera or to attach
your electronic device where it can be quickly accessible. This powder coated aluminum base mounts
directly to the stock gas tank of any listed compatible motorcycles. We include the hardware you
need to mount to the fill port as well. The X-Grip includes a device tether recommended for outdoor
applications. The cradle is compatible with handheld devices that will fit the dimensions listed
below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when
determining the overall size.
HARDWARE INCLUDED
Assembly Hardware
(1) Optional Tether
(1) Glue Tube for Rubber Caps
(3) M6-1.0 x 25mm Socket Head Cap Screw
(3) M5-.8 x 35mm Socket Head Cap Screw
(4) M5-.8 x 45mm Socket Head Cap Screw
(3) M5-.8 x 25mm Socket Head Cap Screw
(3) M5-.8 x 20mm Socket Head Cap Screw
(3) M5-.8 x 16mm Socket Head Cap Screw
(4) M5 Stainless Steel Washers
(3) M6 Stainless Steel Washers
HOLDER DIMENSIONS
Width Range: 1.875" - 3.25"
Depth Range: .875" max
SOCKET-TO-SOCKET LENGTH
1.75"
HOLE PATTERN
See Drawing
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
High strength composite
Stainless steel
PACKAGING TYPE
Poly Bag
ADDITIONAL INFORMATION
Note: To ensure proper fit use the measuring guide. Tank bolts distance, for this part will be 3.5".
WEIGHT
0.81 lbs.
your electronic device where it can be quickly accessible. This powder coated aluminum base mounts
directly to the stock gas tank of any listed compatible motorcycles. We include the hardware you
need to mount to the fill port as well. The X-Grip includes a device tether recommended for outdoor
applications. The cradle is compatible with handheld devices that will fit the dimensions listed
below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when
determining the overall size.
HARDWARE INCLUDED
Assembly Hardware
(1) Optional Tether
(1) Glue Tube for Rubber Caps
(3) M6-1.0 x 25mm Socket Head Cap Screw
(3) M5-.8 x 35mm Socket Head Cap Screw
(4) M5-.8 x 45mm Socket Head Cap Screw
(3) M5-.8 x 25mm Socket Head Cap Screw
(3) M5-.8 x 20mm Socket Head Cap Screw
(3) M5-.8 x 16mm Socket Head Cap Screw
(4) M5 Stainless Steel Washers
(3) M6 Stainless Steel Washers
HOLDER DIMENSIONS
Width Range: 1.875" - 3.25"
Depth Range: .875" max
SOCKET-TO-SOCKET LENGTH
1.75"
HOLE PATTERN
See Drawing
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
High strength composite
Stainless steel
PACKAGING TYPE
Poly Bag
ADDITIONAL INFORMATION
Note: To ensure proper fit use the measuring guide. Tank bolts distance, for this part will be 3.5".
WEIGHT
0.81 lbs.
Purchase Includes:
- (QTY. 4), M5-0.8 x 40MM Socket Head Cap Screw
- (QTY. 3), M5-0.8 x 25MM Socket Head Cap Screw
- (QTY. 4), M5 Stainless Steel Flat Washer
Cradle Dimensions:
- Minimum Width = 1.75" (Minimum Height = 5.5")
- Maximum Width = 4.5" (Minimum Height = 3.25")
- Depth = 0.875"
- Material:Powder Coated Marine Grade Aluminum &
High Strength Composite - Ball Size:B Size 1" Rubber Ball
- Note:The "U" in the part number reflects product packaged in poly bag. To ensure proper fit use the measuring guide. Tank bolts distance, for this part will be 3.5".
- Weight:0.81 lbs.
RAM-B-410U
RAM-B-201U-A
RAM-HOL-UN7BU
