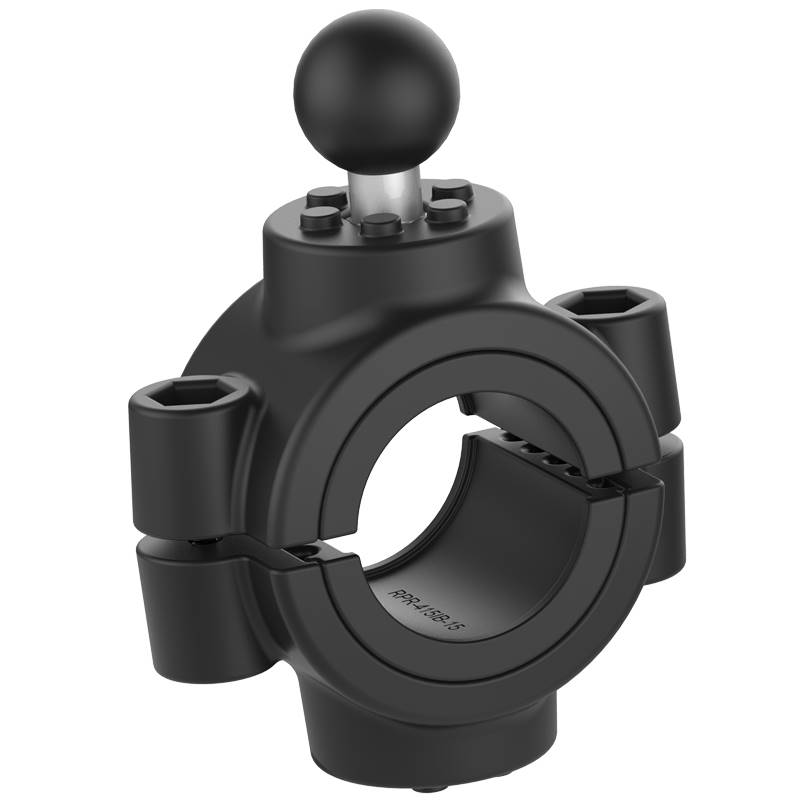

RAM-B-415-15-2U RAM Torque 1 ½" - 2" Diameter Rail Base

The RAM Torque Rail Base accommodates rails and bars ranging from 1.5” to 2” in diameter – the
perfect mounting solution for your ATV or UTV. The include B size hex ball adapter can connect to
either side of the Torque base, and is suitable for rugged environments for supporting action
cameras, spotlights or other devices. Two sizing inserts – one for attachment to 1.5” rails and the
other for attachment to 1.75” rails – are included to create a tight hold while nylon-insert
locknuts prevent loosening in high-vibration environments. Available separately, the RAM B Size Ball
Add-On allows you to attach an additional B Size Ball to the Torque Rail Base for mounting multiple
devices.

HARDWARE INCLUDED
Assembly Hardware
(2) #10-24 x 1" Socket Head Cap Screws
(2) #10-24 Nylock Nuts
(1) 5/32" Hex Key Wrench
(2) 1.5" Split Reducing Bushings
(2) 1.75" Split Reducing Bushings
(1) 172mm x 38.5mm Rubber Adhesive Strip

CLAMP RANGE
1.5" - 2" diameter

BALL/SOCKET SIZE
B Size (1")

WEIGHT CAPACITY
2 lbs

MATERIALS
Marine-grade aluminum

PACKAGING TYPE
Poly Bag

WEIGHT
0.85 lbs.
