RAM Ball Mount with Round AMPS Plate a
RAM Ball Mount with Round AMPS Plate a
Regular price
$115.99 USD
Regular price
Sale price
$115.99 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
D size 2.25"
UPC:
793442914003
Mfg Part #:
RAM-D-101-C-254U
Availability:
In Stock
Part Number:
RAM-D-101-C-254U
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components

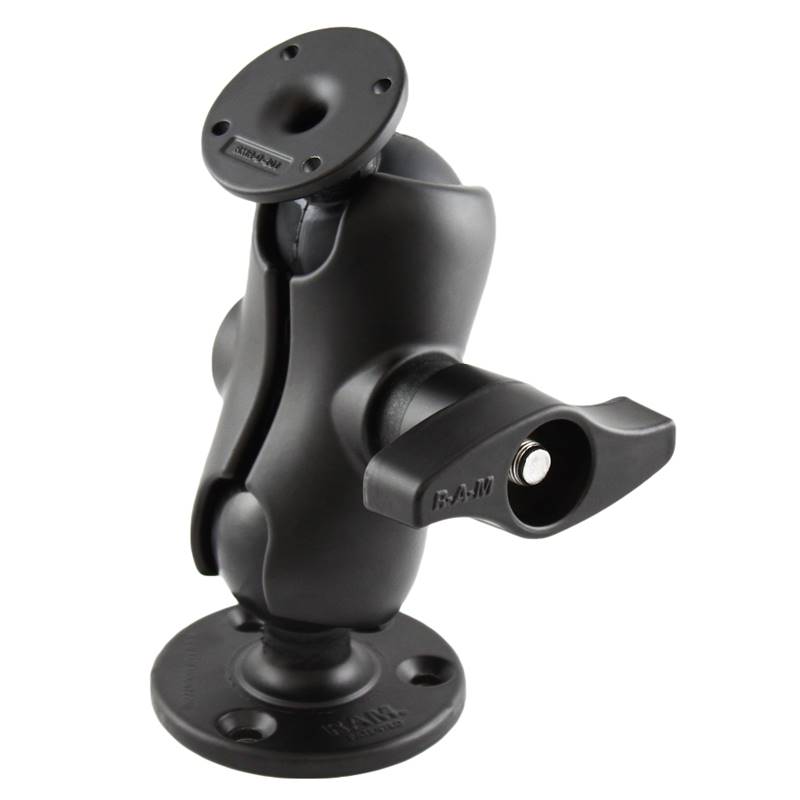

The RAM-D-101-C-254U consists of a 3.68" diameter round base, SHORT length double socket arm and
2.43" diameter round base. The 3.68" diameter round base has pre-drilled holes, including two holes
at 180 degrees and three holes at 120 degrees. The 2.43" diameter round base contains the universal
AMPs hole pattern. Designed into the mount is a 2.25" diameter patented rubber ball and socket
system with adjustment points at both socket ends of the arm. Rubber ball and socket technology
allows for almost infinite adjustment and perfect viewing angles.
PRODUCT DIMENSIONS
Overall Height: 7.875"
SOCKET-TO-SOCKET LENGTH
3.6"
HOLE PATTERN
Smaller Plate: 4-Hole AMPS: 1.181" x 1.496"
Larger Plate: See Drawing
BALL/SOCKET SIZE
D Size (2.25")
WEIGHT CAPACITY
6 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
3.62 lbs.
2.43" diameter round base. The 3.68" diameter round base has pre-drilled holes, including two holes
at 180 degrees and three holes at 120 degrees. The 2.43" diameter round base contains the universal
AMPs hole pattern. Designed into the mount is a 2.25" diameter patented rubber ball and socket
system with adjustment points at both socket ends of the arm. Rubber ball and socket technology
allows for almost infinite adjustment and perfect viewing angles.
PRODUCT DIMENSIONS
Overall Height: 7.875"
SOCKET-TO-SOCKET LENGTH
3.6"
HOLE PATTERN
Smaller Plate: 4-Hole AMPS: 1.181" x 1.496"
Larger Plate: See Drawing
BALL/SOCKET SIZE
D Size (2.25")
WEIGHT CAPACITY
6 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
3.62 lbs.
- Material:Powder Coated Marine Grade Aluminum
- Ball Size:D Size 2.25" Rubber Ball
- Weight Capacity:Up to 6 lbs
- Note:The "U" in the part number reflects product packaged in poly bag.
- Weight:3.62 lbs.
