RAM Universal Double Ball Mount with Two
RAM Universal Double Ball Mount with Two
Regular price
$163.49 USD
Regular price
Sale price
$163.49 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
D size 2.25"
UPC:
793442310164
Mfg Part #:
RAM-D-101-MIU
Availability:
Out Of Stock
Part Number:
RAM-D-101-MIU
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components

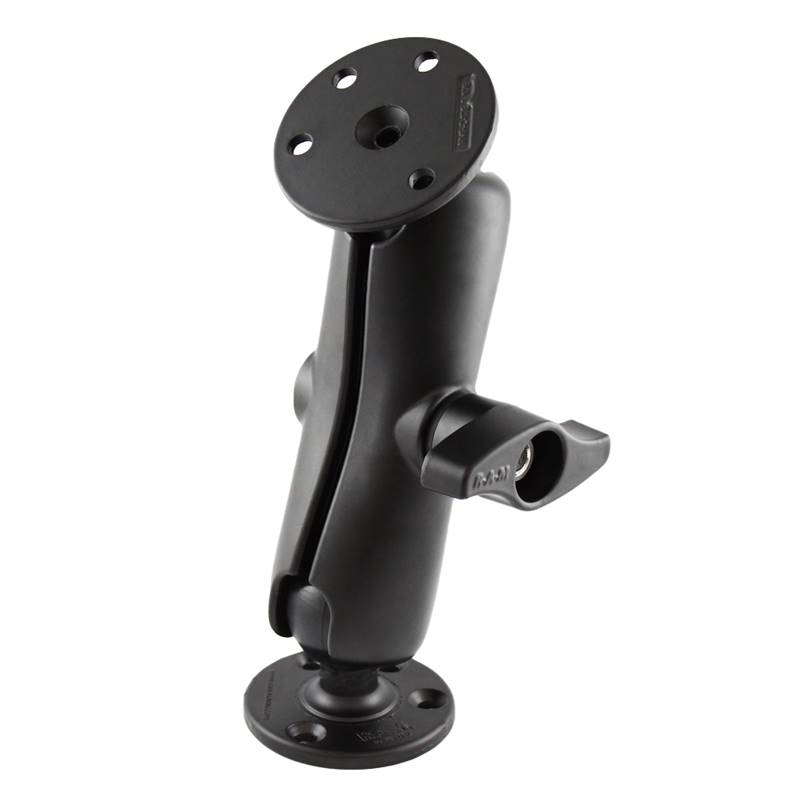

The RAM-D-101-MIU consists of (2qty) 3.68" diameter round bases and STANDARD length double socket
arm with jam nut. The 3.68" diameter round bases have pre-drilled holes, including two holes at 180
degrees and three holes at 120 degrees. Designed into the mount is a 2.25" diameter patented rubber
ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket
technology allows for almost infinite adjustment and perfect viewing angles.
PRODUCT DIMENSIONS
Overall Height: 11.125"
SOCKET-TO-SOCKET LENGTH
6.88"
HOLE PATTERN
See Drawing
BALL/SOCKET SIZE
D Size (2.25")
WEIGHT CAPACITY
6 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
5.0 lbs.
arm with jam nut. The 3.68" diameter round bases have pre-drilled holes, including two holes at 180
degrees and three holes at 120 degrees. Designed into the mount is a 2.25" diameter patented rubber
ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket
technology allows for almost infinite adjustment and perfect viewing angles.
PRODUCT DIMENSIONS
Overall Height: 11.125"
SOCKET-TO-SOCKET LENGTH
6.88"
HOLE PATTERN
See Drawing
BALL/SOCKET SIZE
D Size (2.25")
WEIGHT CAPACITY
6 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
5.0 lbs.
- Material:Powder Coated Marine Grade Aluminum
- Ball Size:D Size 2.25" Rubber Ball
- Weight Capacity:Up to 6 lbs
- Note:The "U" in the part number reflects product packaged in poly bag.
- Weight:5.0 lbs.
